Mastering VIA Technology: The Core of Advanced HDI PCB Design

1. The Miniaturization Imperative

In the relentless pursuit of smaller, faster, and more powerful electronic devices, High Density Interconnect(HDI) Printed Circuit Boards(PCBs) have emerged as an indispensable technology. From the smartphone in your pocket to life-saving medical implants and complex aerospace systems, HDI PCBs are the silent workhorses enabling unprecedented levels of functionality in compact footprints. At the heart of this revolution lies advanced VIA technology–the intricate three-dimensional structures that facilitate electrical connections across multiple layers of a PCB without consuming valuable surface real estate or compromising performance.

Once bulky beasts with wide traces and big vias, PCBs have evolved dramatically. Today, HDI technology has “flipped the script”, allowing engineers to cram more functionality into less real estate. This article delves into the sophisticated world of advanced VIA technology, exploring their types, fabrication methods, impact on signal integrity, and their pivotal role in defining the future of compact electronics.

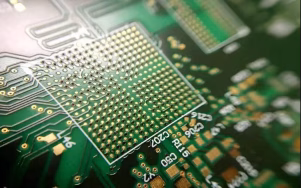

2. What are HDI PCBs and Why Vias are Crucial?

High Density Interconnect(HDI) PCB design refers to the use of advanced manufacturing techniques to create circuit boards with finer lines, smaller vias, and denser component placement. Unlike traditional PCBs, HDI boards achieve higher circuit density per unit area, making them essential for modern electronic devices that demand compact and high-performance circuitry. This capability is paramount in applications such as 5G telecommunications, advanced automotive systems, and wearable technology, where space is at a premium and processing power is critical.

The “via” is a fundamental component of any multilayer PCB, serving as a conductive pathway that connects different layers of the board. In HDI PCBs, vias are not merely simple holes; they are complex 3D structures whose design and implementation significantly impact signal integrity, board reliability, and overall fabrication cost. The ability to effectively route signals and power through these miniature pathways is what truly distinguishes HDI from conventional PCB technology. Without advanced via structures, the intricate interconnectivity required for dense component placement would be impossible, leading to larger, less efficient, and ultimately, less competitive devices.

3. The Anatomy of VIA Technology: Types and Structures

Advanced HDI PCBs utilize several types of vias, each designed for specific purposes in achieving optimal signal routing and density. Understanding these structures is key to appreciating the complexity and innovation within HDI technology.

• ThroughHole Vias: These are the most basic type, extending from the top to the bottom layer of the PCB. While common in traditional PCBs, their use in HDI is limited due to the space they consume, restricting routing channels on all layers they pass through.
• Blind Vias: These vias connect an outer layer to one or more inner layers but do not pass through the entire board. They are “blind” because they cannot be seen from the opposite outer layer. Blind vias help reduce board size and enhance routing density by only occupying necessary layers, thus freeing up space on other layers.
• Microvias: Microvias are the hallmark of HDI technology. These are tiny vias, typically 6 mils(150 microns) or less in diameter, formed by laser drilling. They can be blind or buried and are crucial for connecting fine-pitch components and achieving high routing density. Traditional HDI designs relied on laser-drilled microvias around 4 mils in size, but advancements are pushing this even further.
• Buried Vias: These vias connect two or more inner layers of the PCB and are completely encapsulated within the board, invisible from the outer surfaces. Buried vias are critical for creating highly dense, multilayer interconnections without impacting the outer layer routing, further optimizing space and reducing signal path length.
• Stacked Vias: This involves placing one microvia directly on top of another in different layers. Stacked vias offer the highest density interconnectivity and are essential for complex multilayer boards, allowing for very short signal paths. However, their fabrication is more challenging and costly due to the precise alignment required.
• Staggered Vias: In contrast to stacked vias, staggered vias are offset from each other across different layers. While not as dense as stacked vias, they are easier to manufacture and still provide significant density improvements over traditional through hole vias.

The choice of via type and its strategic placement are critical design decisions, impacting everything from signal performance to manufacturing complexity and cost. The integration of microvias and fine pitch components is the essence of HDI technology.

4. Precision Manufacturing: Advanced Via Fabrication Techniques

The creation of these intricate via structures requires highly advanced fabrication techniques, moving far beyond conventional mechanical drilling. The precision and delicacy involved in HDI manufacturing are what enable its superior performance.

• Laser Drilling:This is the primary method for creating microvias. Lasers offer unparalleled precision, allowing for drilling tiny holes with diameters as small as 2 mils(50 microns). Different types of lasers(CO2, UV, excimer) are used depending on the material and desired via characteristics. Laser drilling allows for smaller capture pads—the conductive ring around the via—which further contributes to higher routing density.
• Direct Laser Ablation(DLA):A more refined laser drilling technique that precisely removes material layer by layer to create microvias, ensuring clean holes and minimal damage to surrounding material.
• Plasma Etching:Used for creating vias in specific dielectric materials, especially in advanced packaging where very fine structures are needed.
• Sequential Build-Up(SBU) Process: HDI PCBs are often manufactured using an SBU process, where layers are built up one by one, with vias created and filled at each stage before the next layer is added. This allows for the creation of blind, buried, and stacked microvias with high accuracy. Each layer is laminated, drilled(often by laser), plated, and etched before the next layer is added. This iterative approach is crucial for achieving the density and complexity of multilayer HDI structures.
• Via Filling and Plating:After drilling, vias are plated with copper to make them conductive. For reliability and to prevent solder from wicking into the via during assembly, especially for stacked microvias, these vias are often filled with non-conductive or conductive epoxy before further processing. This ensures a planar surface for subsequent layers or component attachment.

These advanced fabrication techniques for HDI PCBs are critical for meeting the demands of next-generation electronics, enabling smaller, faster, and more reliable devices.

5. Beyond HDI: The Ultra HDI Revolution

While traditional HDI has pushed the boundaries, the industry is already moving towards “Ultra HDI” technology, redefining via structure and density in unprecedented ways. Ultra HDI is all about pushing printed circuit board feature sizes to the extreme, not only for traces but especially for microvias.

We are now seeing “via sizes as small as 2 mils, with absolute minimum capture pads of 6 mils”. To put this into perspective, this means a 75-micron via can be achieved with an 8–10 mil capture pad, drastically shrinking the PCB footprint and facilitating the use of even higher-density components. This miniaturization is crucial as electronic devices become more complex and compact, driving the continuous demand for higher interconnect densities.

This leap to Ultra HDI allows for even more intricate routing and component placement, enabling the creation of devices that were previously unimaginable. It addresses the growing need for high-speed signal transmission and reduced power consumption in increasingly miniaturized products.

6. Enhancing Performance: Signal Integrity and Reliability

The careful design and fabrication of advanced vias in HDI PCBs are paramount for maintaining excellent signal integrity and ensuring long -term reliability. Poorly designed or manufactured vias can introduce signal reflections, impedance mismatches, and crosstalk, degrading performance in high-speed applications.

By using microvias, designers can achieve shorter stub lengths, which minimizes signal reflections and inductance, crucial for high-frequency signals. The ability to route signals directly between layers with blind and buried vias also reduces the overall signal path length, leading to lower signal loss and improved data transmission rates. Stacking microvias alongside embedded components and layered constructions enables HDI PCBs to enhance signal clarity.

Reliability is also significantly enhanced. The precise control over via dimensions and plating processes, coupled with robust via filling, minimizes potential failure points such as voids or cracks. This is particularly critical in mission-critical applications where device failure can have severe consequences, such as in aerospace or medical devices. Advanced VIA technology contributes to better thermal management by allowing for more efficient heat dissipation pathways, preventing localized hot spots that could compromise device longevity.

7. Diverse Applications: Where Advanced Vias Shine

The widespread adoption of advanced VIA technology in HDI PCBs has enabled breakthroughs across numerous industries:

• Consumer Electronics:Smartphones, tablets, smartwatches, and virtual reality headsets all rely heavily on HDI PCBs with microvias to pack maximum features into minimal space.
• Medical Devices:Implantable devices like pacemakers, hearing aids, and advanced diagnostic equipment demand ultra-compact, highly reliable circuitry, a perfect fit for advanced HDI. Implantable heart monitors exemplify where HDI is the unsung hero.
• Telecommunications:5G infrastructure, network routers, and high-speed data centers utilize HDI PCBs to handle immense data traffic with minimal latency and maximum efficiency.
• Automotive:Advanced Driver-Assistance Systems(ADAS), infotainment systems, and engine control units(ECUs) increasingly integrate HDI technology for compact, robust, and high-performance electronics.
• Aerospace and Defense:Avionics, satellite systems, and defense electronics require boards that are lightweight, durable, and capable of operating under extreme conditions, making advanced HDI an ideal choice.

The integration of multilayer PCB HDI structures support intricate routing and component density, critical for applications in telecommunications, medical devices, and consumer electronics.

8. Navigating Challenges and Future Outlook

Despite their numerous advantages, manufacturing advanced VIA HDI PCBs presents several challenges. The precision required for laser drilling and sequential build-up processes demands sophisticated equipment and highly skilled personnel. The increasing complexity of stacked and staggered microvias can drive up fabrication costs and require stringent quality control. Material selection is also critical, as new dielectric materials are needed to support higher frequencies and better thermal management in increasingly dense boards.

Looking ahead, the demand for even smaller vias, higher layer counts, and further integration of embedded components will continue to push the boundaries of advanced via technology. Innovations in materials, such as ultra-low loss dielectrics, and advancements in manufacturing processes, including additive manufacturing techniques, are expected to play a significant role. The drive towards Ultra HDI and beyond will continue to redefine what’s possible in electronics, enabling the next generation of smart, connected, and highly efficient devices.

9. HDI PCB VIA Technology FAQs

10. Summary

Advanced VIA technology is the cornerstone of High Density Interconnect(HDI) PCBs, enabling the creation of compact, high-performance electronic devices essential for modern life. From the foundational understanding of HDI and the critical role of vias, we’ve explored the diverse types of via structures—including crucial microvias, blind, and buried vias—and the sophisticated laser drilling and sequential build-up processes that bring them to life. The emergence of Ultra HDI is pushing these boundaries further, delivering unprecedented levels of miniaturization and density. These innovations collectively ensure superior signal integrity, enhanced reliability, and thermal management across a vast array of applications, from medical implants to 5G infrastructure. While manufacturing challenges persist, continuous advancements promise to further refine these techniques, driving the next wave of electronic evolution.
