OrinewPCB · SHENZHEN, CHINA
Turnkey PCB Assembly Manufacturer
OrinewPCB coordinates PCB fabrication, BOM sourcing, SMT and through-hole assembly for prototypes and production. Define the inspection, programming and functional tests your build needs with one manufacturing partner.
Send your Gerber files, BOM and project requirements. Still preparing your files? Tell us what you need.
ONE PARTNER FOR YOUR PCBA PROJECT
A complete assembly service,
from sourcing to shipment.
Bring your PCB and component requirements together with assembly and testing. Choose full turnkey support, or supply selected materials for a partial turnkey project.

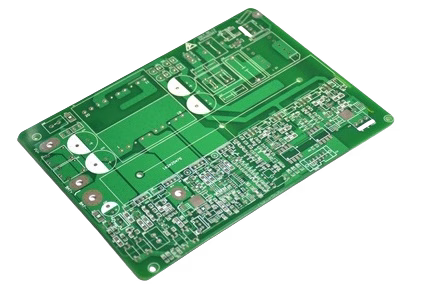

PCB Manufacturing
PCB fabrication coordinated with your design, material requirements and assembly process.

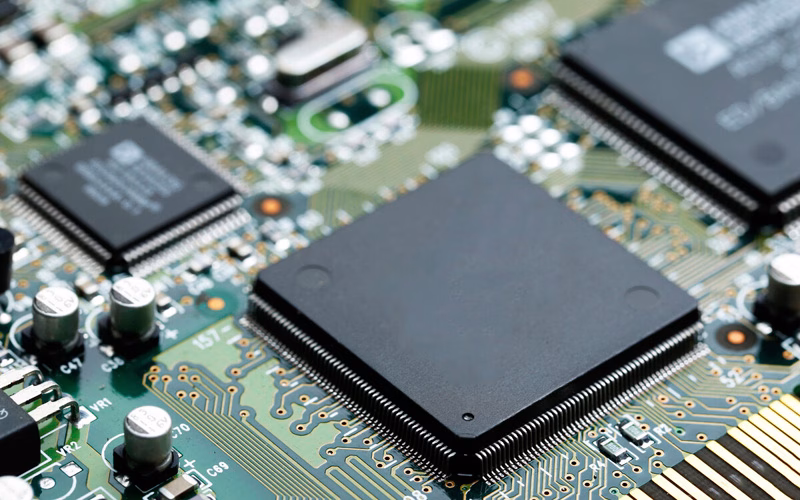

Component Procurement
BOM sourcing with availability review and alternatives discussed before material changes.

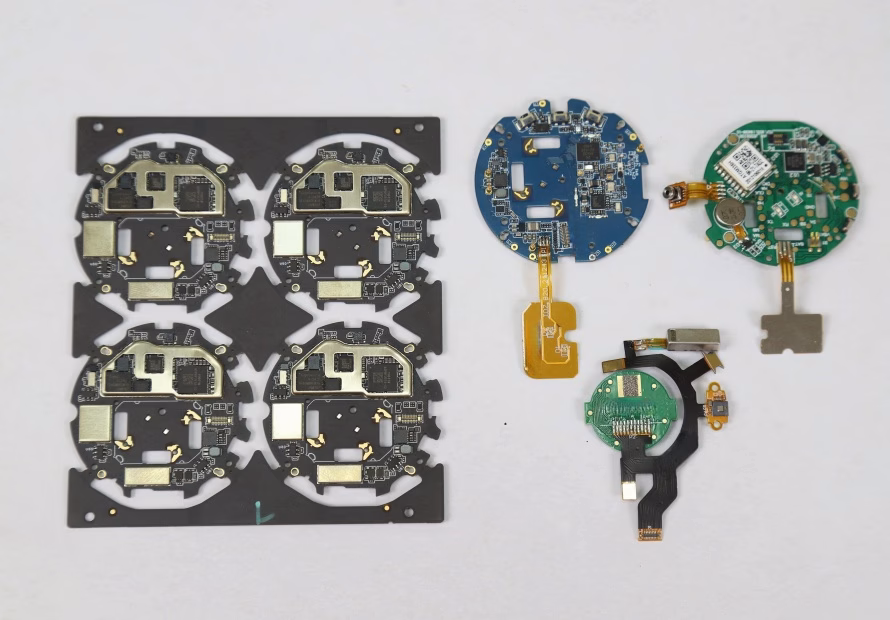

SMT & Through-Hole
Assembly options for your board design, from prototypes to production requirements.
Inspection & Testing
Discuss inspection, programming and functional testing requirements with our team.
CUSTOMER PROJECT EXPERIENCE
Real builds. Practical support.
Customers who came back.
See how customers describe OrinewPCB’s engineering review, material coordination and assembly support—from mining-equipment PCBA to sample-to-batch builds and repeat SMT orders. A research PCB project also shows our fabrication support.
MINING EQUIPMENT · PCBA
A clearer build plan before production.
Build need: PCBA assembly for mining equipment.
Our support: Engineers suggested Gerber changes, supplied a visual comparison and shared production updates.
Customer outcome: The customer reports that the finished product met their expectations.
PROTOTYPE TO BATCH · PCBA
From 2 sample boards to 50 sets.
Build need: An urgent order increase, with some key components carrying a four-week lead time.
Our support: DFM review flagged design issues, while the team coordinated materials for the larger build.
Customer outcome: Rahul reports that the expanded order was delivered on time.
URGENT PROJECTS · PCBA
Responsive support when deadlines were tight.
Build need: Several time-sensitive projects involving design changes and complex PCBA requirements.
Our support: The team responded quickly to design modifications, assembly questions and rush-order needs.
Customer outcome: Jason describes the support across these projects as consistently reliable.
BUILD FILES · ENGINEERING REVIEW
Layout checks when placement data was missing.
Build need: Boards for which no pick-and-place file was available.
Our support: The team communicated with the customer to check the layout before the build.
Customer outcome: Matthew reports boards produced to a high standard and excellent communication.
REPEAT ORDERS · SMT ASSEMBLY
Repeat orders. Precise SMT placement.
Build need: Repeat PCB and SMT assembly orders, with attention to placement quality.
Our support: The customer highlights PCB quality, SMT placement, quality control and support from their contact.
Customer outcome: Sophie gives a positive recommendation based on her repeated orders.
RESEARCH PROJECT · PCB FABRICATION
50 Rogers PCBs for a research deadline.
Build need: A UK university research project on a tight schedule after Chinese New Year.
Our support: The customer reports that production and testing of 50 Rogers PCBs were completed in seven days.
Customer outcome: Dr. Pete reports shipment on schedule and a subsequent long-term supplier agreement.
Summaries of customer-reported experiences published on our OrinewPCB service website. Specifications, inspection scope and delivery dates are confirmed for each order; a past project’s lead time is not a standard delivery promise. Read the published Customer Feedback.
Bring your next build to OrinewPCB.
Need PCB fabrication, BOM sourcing and assembly in one project? Send your files, quantity and target date so we can review a turnkey PCBA plan.
ASSEMBLY OPTIONS
Support for the stage your project is in.
Validate Your Design
Discuss prototype assembly, design review and the testing needed before moving into production.
Build Your Next Batch
Get support for low-volume and high-mix projects, with sourcing and assembly planned together.
Coordinate the Full Build
Bring PCB fabrication, component procurement, assembly and testing into one project workflow.
Need a faster turnaround? Discuss quick-turn options. Lead time depends on your design, component availability, quantity and testing requirements.
MEET YOUR MANUFACTURING PARTNER

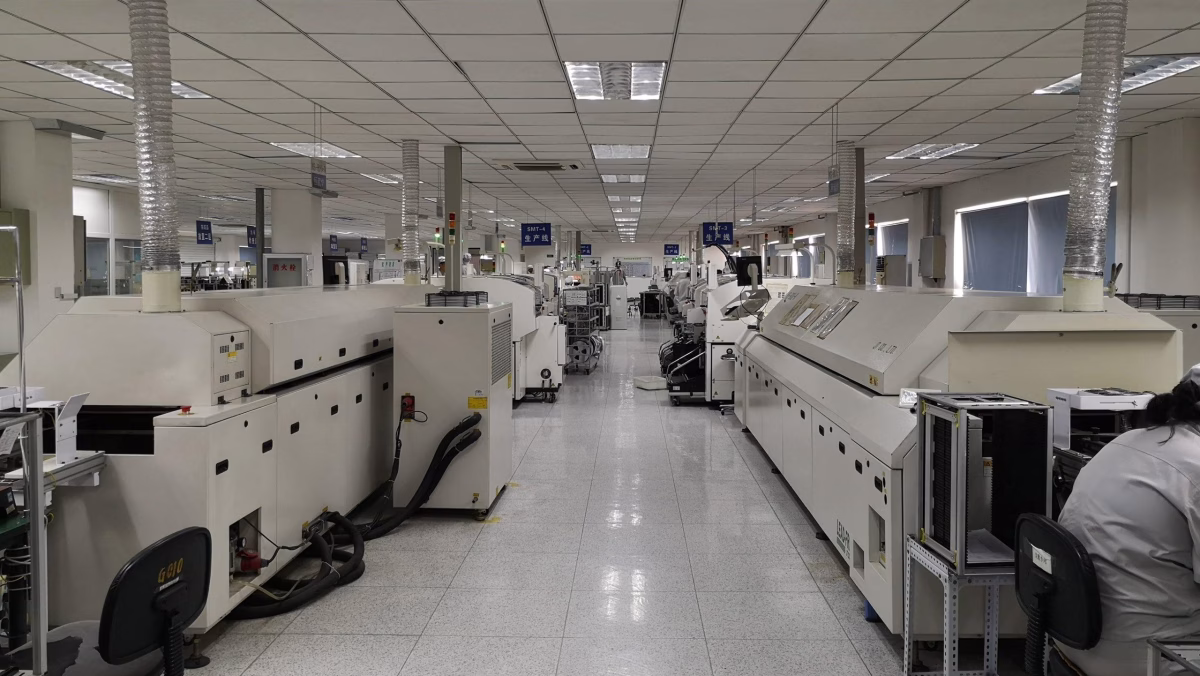

PCBA manufacturing in Shenzhen.
ORINEW TECHNOLOGY CO., LIMITED provides PCB fabrication, component sourcing and assembly services for electronics projects.
Discuss your board design, sourcing needs and inspection requirements with our team before your build begins.
- Full turnkey and partial turnkey assembly options
- SMT and through-hole assembly
- Programming, functional testing and box-build requirements reviewed by project
QUALITY THROUGH THE BUILD
9 inspection steps, from materials to shipment.
Our PCBA quality workflow covers nine inspection stages across incoming materials, assembly and shipment. Confirm the inspection plan, acceptance criteria and X-ray coverage for your build before production. Programming and functional testing are reviewed separately for your project.

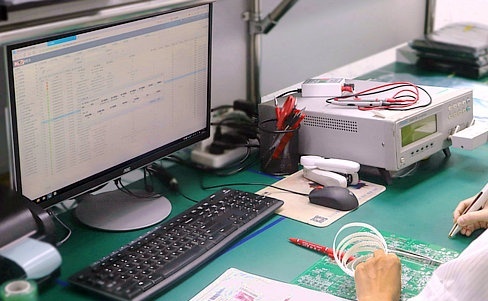

STEP 01IQC Incoming Material Inspection
Check incoming PCBs and components against the approved specifications before materials enter the assembly process.

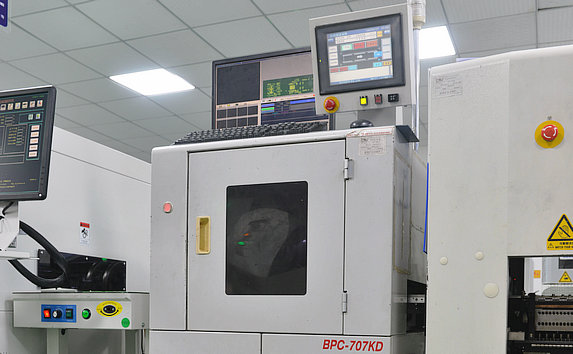

STEP 02SPI Solder Paste Inspection
Inspect solder paste deposits after printing to identify printing defects before component placement.
-

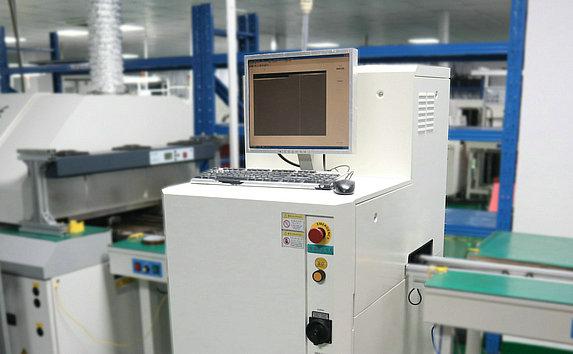

STEP 03
Online AOI Inspection
Use automated optical inspection on the production line to identify placement errors, missing parts and visible assembly defects.

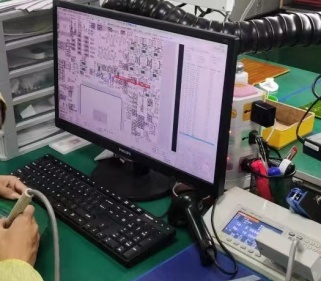

STEP 04SMI First Article Inspection
Verify the first assembled board against the build documents, including component placement and resistance or capacitance checks where specified.
STEP 05IPQC In-Process Inspection
Check work in progress and process conditions so issues can be identified and corrected during assembly.

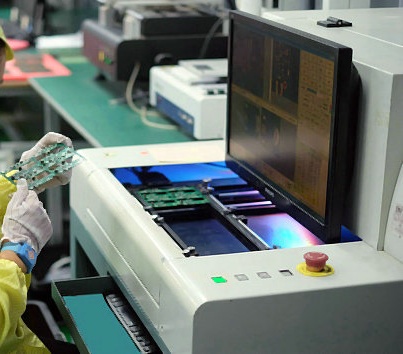

STEP 06Offline AOI Inspection
Inspect assembled boards after soldering for visible placement and solder-joint defects before final release.

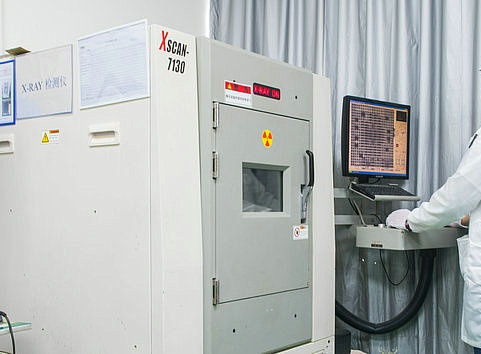

STEP 07X-Ray Solder-Joint Inspection
Inspect hidden solder joints, including BGA connections, according to the inspection scope agreed for your build.

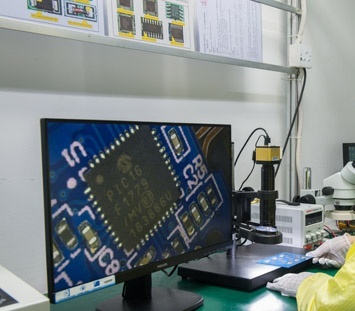

STEP 08QC Manual Inspection
Review finished assemblies for visible workmanship, component orientation and assembly details against the agreed acceptance criteria.

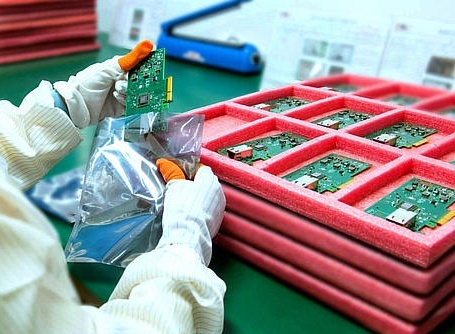

STEP 09QA Pre-Shipment Inspection
Verify released boards, identification, quantity and protective packaging before shipment.
HOW TO GET STARTED
From your files to a production plan.
Share Your Project
Send Gerber files, BOM, placement data, quantity and any test requirements you have.
Review & Quote
Discuss manufacturability, component availability, delivery requirements and scope.
Confirm & Build
Approve project details and commercial terms before fabrication and assembly.
Inspect & Ship
Complete the agreed inspection and testing before your finished assemblies are shipped.
BEFORE YOU REQUEST A QUOTE
Common PCBA project questions.
What files should I send for a turnkey PCBA quote?
Send your Gerber files, BOM and pick-and-place data when available. Include quantities, target delivery date and any programming or test requirements. If your files are incomplete, describe your project so we can discuss the next step.
Does assembly inspection prove that my circuit works?
Assembly inspection checks placement and solder joints. Functional testing verifies operation against your procedure and pass/fail criteria. Confirm the test scope, firmware and fixture requirements before production.
What does turnkey PCB assembly include?
Turnkey PCB assembly combines bare PCB fabrication, component procurement and assembly under one project scope. OrinewPCB also reviews inspection, programming and functional testing requirements with your quote. In partial turnkey, you supply agreed materials.
Can I supply some of the components myself?
Yes. Our turnkey assembly service includes partial turnkey options. Tell us which PCBs or components you will supply and which materials you would like us to source.
What determines the PCBA price and lead time?
Board specifications, order quantity, BOM cost and availability, assembly complexity and test requirements all affect the quote. Share your target schedule so the team can confirm a suitable plan.
Can I request PCB fabrication or components separately?
Yes. Tell us whether you need the complete PCBA service, bare PCBs or component sourcing so we can review the right scope for your project.
LET’S REVIEW YOUR BUILD
Request your turnkey PCBA quote.
Tell us what you are building and what support you need. Send your files now, or start with a short project description.
- Gerber files, BOM and placement data, if ready
- Prototype and production quantities
- Target delivery date and destination
- Programming, testing or box-build requirements
For an initial review, tell us the application, quantity and target date. A final manufacturing quote requires the approved board files and BOM.
