Industrial Control PCBA: Turnkey Assembly & RFQ Guide

ORINEWPCB · INDUSTRIAL ELECTRONICS PURCHASING GUIDE

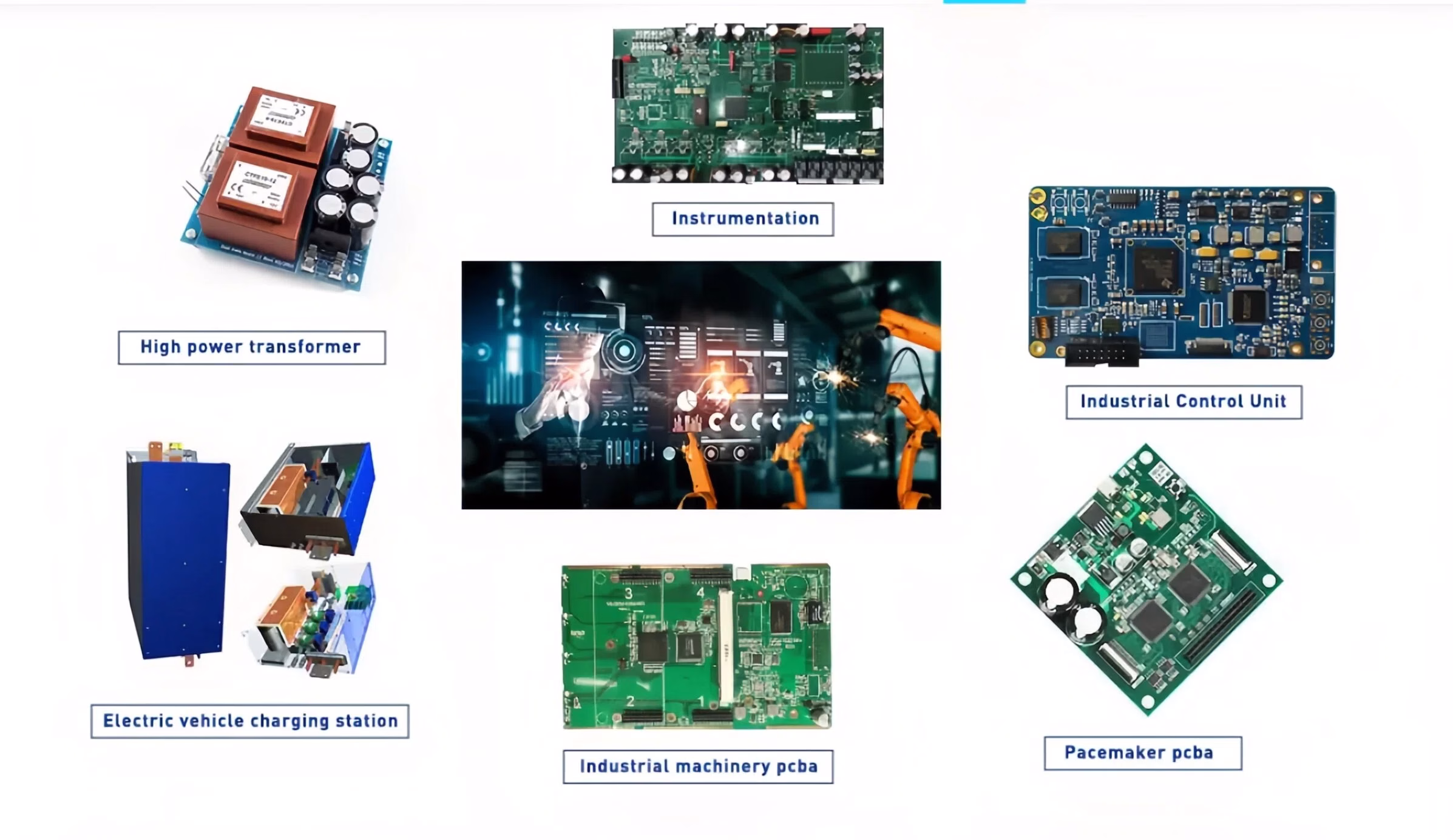

Industrial control PCBA is an assembled circuit board used to monitor signals, control equipment or connect industrial devices. Examples include PLC I/O modules, sensor interfaces and equipment controllers. A useful manufacturing inquiry defines the operating environment, approved components, board revision, firmware and acceptance tests. Performance and qualification requirements are specific to the finished product.

For turnkey industrial PCB assembly, ask the supplier to quote PCB fabrication, BOM procurement, assembly and the agreed programming or testing scope together.

Request PCBA Quote

What makes an industrial control PCBA order different?

The purchasing challenge is often repeatability over multiple builds. Connectors must match the equipment, component substitutions need approval, and the firmware and test instructions must match the hardware revision. A board that powers up on a bench still needs the acceptance checks defined for its actual application.

State whether the assembly will sit inside a protected cabinet, near a motor drive, outdoors or in a humid environment. Include temperature, supply conditions, mechanical restraints and relevant compliance requirements from the product specification. Avoid treating one temperature range, lifetime or test percentage as a rule for every industrial board.

Define the PCB, components and assembly requirements

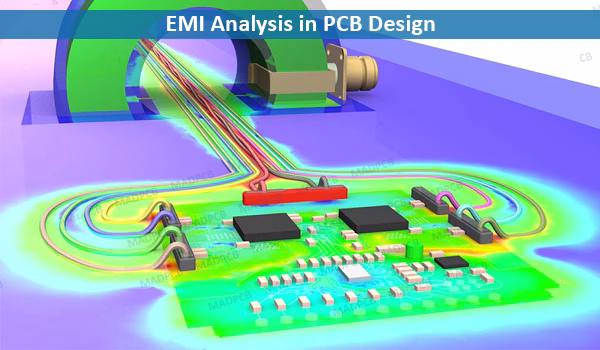

Release the fabrication data and BOM as a matching set. Include PCB layer stack, thickness, copper requirements, surface finish, controlled impedance where required, and component placement data. The design and manufacturing review should resolve unclear dimensions, component orientation, connector access and assembly sequencing before production.

Board material, copper weight and protection decisions should follow the design requirements and review. A high-Tg laminate alone does not qualify an assembly for a specific environment. If your released specification calls for that material, include it when reviewing high-Tg PCB assembly. For connector-heavy designs, also review through-hole assembly requirements.

Control component sourcing and future substitutions

A BOM should identify the manufacturer and complete manufacturer part number for each fitted line, along with quantity per board and reference designators. Include package, rating and an approved alternate list where available. A similar-looking part is not enough to authorize a substitution.

• Critical components: identify programmed devices, precision analog parts, power devices and application-specific connectors that require particular approval.
• Purchasing constraints: state any approved-source, traceability, date-code or packaging requirements relevant to your project.
• Shortages: ask for unavailable items and proposed alternatives to be flagged before procurement or build release.
• Repeat orders: retain the released BOM and change history so an older quotation does not silently become the specification for a new revision.

For a one-stop build, see OrinewPCB turnkey PCB assembly. If you supply selected parts, use the partial turnkey sourcing checklist to assign ownership of each BOM line.

Agree on programming, testing and protection

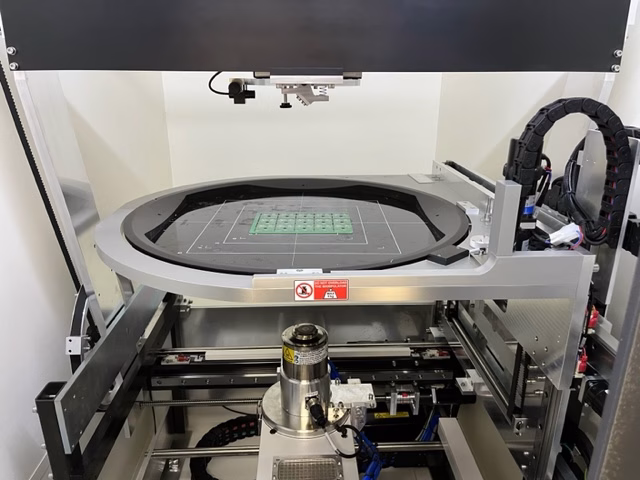

Define workmanship inspection and functional verification separately. An inspection record and a functional test answer different questions. If an IPC acceptance standard is required, specify the applicable document, revision and product class in the order, together with any customer-specific criteria.

For programming, provide the released firmware file, version or checksum, programming connection, tool requirements and handling instructions for unique identifiers. Define who controls the firmware release and whether each board needs a programming record.

For functional tests, supply a written procedure, fixtures or fixture requirements, inputs, loads, expected outputs, limits and pass/fail rules. Identify whether results are needed per unit or per lot. Confirm fixture development, programming, functional testing and any environmental testing in the quotation.

If conformal coating, cleaning or other protection is required, provide the material specification, coverage, connector and test-point keep-outs, inspection criteria and process order. These operations need an agreed scope; do not assume they are included in every PCBA order. Final product compliance testing should follow the product requirements and agreed responsibility.

Industrial PCB assembly RFQ checklist

Use this checklist to make supplier quotations comparable. On a phone, swipe the table horizontally to view both columns.

For repeatable batch release, use the prototype-to-production PCB assembly checklist. If your delivery needs include an enclosure, cables or product integration, distinguish that scope using the box build and PCBA comparison.

How to compare turnkey industrial PCBA quotations

Compare the same released revision, quantities, approved sourcing assumptions and test scope. Ask each quotation to distinguish PCB and component costs, setup or tooling, assembly, programming, fixtures, tests and delivery costs where applicable. A lower assembly line price can exclude work needed for your intended delivery stage.

Ask what starts the confirmed schedule: approved files, component availability, supplied-part arrival, fixture readiness or first-article approval. Review the first build against the agreed criteria and close approved changes before ordering the next batch. Supplier review should make exceptions and open questions visible before release.

Industrial control PCBA FAQ

Can industrial control PCB assembly be ordered as full turnkey?

Yes. Request PCB fabrication, component sourcing and assembly together, and define programming, tests and delivery requirements. OrinewPCB reviews the project files and requirements before confirming the available scope, quotation and schedule.

Do all industrial control boards need high-Tg PCB material?

No single laminate specification applies to every industrial controller. Select the material for the released design, thermal conditions and reliability requirements, then confirm the manufacturing specification during review.

Is conformal coating included in an assembly quotation?

Include it explicitly if needed. Specify the material, coverage, keep-outs and acceptance criteria, and confirm availability and cost for your project.

Does visual inspection prove the controller works?

Visual workmanship inspection does not replace a defined functional test. Specify which power, interface, firmware and operating checks are needed and how results will be accepted.

Can I supply the MCU or other critical components?

Request a partial turnkey build and identify the supplied BOM lines. Confirm part identity, quantity, packaging, arrival timing and programming status before the build is scheduled.

Can I request a quote before all test files are complete?

You can start with the board files, BOM, quantities and a description of the intended tests. Mark pending items clearly. Final pricing and schedule depend on the confirmed manufacturing and test scope.

Request an industrial control PCBA quote

Send OrinewPCB your board revision, BOM, prototype or batch quantity, target date and destination. State whether you need full turnkey sourcing, supplied-part assembly, programming or a defined test procedure.

Inquiry example: “Industrial controller, revision [X], [quantity] boards; full turnkey PCB fabrication, BOM sourcing and assembly. Firmware [available/pending], tests [brief scope], target [date/destination]. Please flag BOM shortages and any unclear build requirements.”
