In today’s interconnected world, electronic devices are constantly tasked with bridging the gap between the physical and digital realms. From precision sensors measuring environmental data to sophisticated control systems managing complex industrial processes, the demand for powerful, efficient, and versatile integrated circuits is skyrocketing. At the heart of many of these innovations lies the mixed-signal microcontroller (MCU).
This article delves into the capabilities of a standout in this category: the Texas Instruments (TI) MSP430FR2355TRHAR/MSP430FR2355TRHAT. Part of TI’s renowned MSP430™ family, these devices are more than just an IC MCU; they represent a leap in ultra-low-power MCU design, blending advanced analog functionality with a high-performance digital
core. Designed for a myriad of embedded applications, the MSP430FR2355 series leverages innovative MSP430™ FRAM technology, offering unparalleled speed, endurance, and energy efficiency. Join us as we explore what makes this 1.8V ~ 3.6V Microcontroller IC a preferred choice for engineers and developers worldwide.
1. What Defines a Mixed-Signal Microcontroller?
Before diving into the specifics of the MSP430FR2355, it’s crucial to understand what distinguishes a mixed-signal microcontroller. Traditional microcontrollers primarily handle digital operations, processing binary data and controlling digital peripherals. Analog signals, which are ubiquitous in the real world (temperature, pressure, light, sound), typically require external components like analog-to-digital converters (ADCs) and digital-to-analog converters (DACs) to interface with these digital MCUs.
A mixed-signal microcontroller integrates both analog and digital processing capabilities onto a single chip. This means it includes not only the central processing unit (CPU) and digital peripherals (timers, UART, SPI, I2C) but also robust analog components such as ADCs, DACs, operational amplifiers (op-amps), and comparators. This integration simplifies board design, reduces component count and cost, minimizes power consumption, and often improves signal integrity by keeping sensitive analog pathways shorter and more contained. For “Internal Integrated Circuits,” this holistic approach is a significant advantage.
2. Introducing the MSP430FR2355 Series: A Closer Look
The MSP430FR2355 is a prime example of a modern mixed-signal microcontroller, specifically designed to meet the rigorous demands of power-sensitive applications. It belongs to the MSP430™ family, known for its ultra-low-power capabilities and a rich ecosystem of development tools. This particular series stands out due to its unique combination of Ferroelectric Random Access Memory (FRAM) and highly configurable analog peripherals.
At its core, the MSP430FR2355 is an “IC MCU” built for efficiency and flexibility. It’s engineered to operate across a wide voltage range of 1.8V ~ 3.6V, making it suitable for various battery-powered devices. The integration of advanced “Internal Integrated Circuits” means developers can achieve complex functionalities without relying on numerous external components, streamlining their designs and accelerating time-to-market.
3. Unpacking the Core: MSP430 CPU16 and FRAM Technology
The brain of the MSP430FR2355 is the powerful 16-bit “MSP430 CPU16” CPU. This architecture is optimized for low-power operation and efficient code execution, delivering excellent performance per milliamp. It features a robust instruction set that supports both C and assembly programming, making it accessible to a wide range of developers.
MSP430™ FRAM:The Non-Volatile Memory Revolution
One of the most distinguishing features of the MSP430FR2355 is its use of “MSP430™ FRAM” as its main non-volatile memory. Unlike traditional Flash memory, FRAM offers several compelling advantages:
- Ultra-Low Power Writes:FRAM requires significantly less energy to write data compared to Flash, extending battery life in applications that frequently log or update
- Exceptional Write Endurance:FRAM boasts an endurance of 1015cycles, vastly superior to the typical 104-105cycles of Flash. This makes it
ideal for applications requiring frequent data logging or configuration updates without degrading memory integrity. - High-Speed Writes:Data can be written to FRAM at CPU speed, eliminating the need for complex buffering schemes often required with slower Flash writes.
- Non-Volatile by Design:Like Flash, FRAM retains data without power, ensuring critical information is preserved even during power outages.
This “MSP430™ FRAM” technology simplifies firmware development by allowing developers to treat non-volatile memory like RAM, enabling dynamic data storage and rapid updates, crucial for modern “Embedded” systems.
4. Integrated Analog Excellence: A Designer’s Dream
The mixed-signal capabilities of the MSP430FR2355 truly set it apart. It comes equipped with a suite of high-performance analog peripherals that eliminate the need for many external components, further reducing system cost, size, and power consumption. These “Internal Integrated Circuits” include:
- Configurable Operational Amplifiers (Op-Amps):The device features four integrated op-amps that can be configured for various functions, such as programmable gain amplifiers (PGAs), DAC buffers, or transimpedance amplifiers (TIAs) for current-sensing applications. This flexibility is invaluable for interfacing with diverse sensors.
- 12-bit Analog-to-Digital Converter (ADC):A high-resolution 12-bit SAR (Successive Approximation Register) ADC allows for precise measurement of analog signals, crucial for accurate sensor readings and data acquisition.
- 12-bit Digital-to-Analog Converter (DAC):The integrated 12-bit DAC provides a high-resolution analog output, useful for generating waveforms, controlling analog components, or providing analog setpoints in control systems.
- Enhanced Comparators:Two integrated comparators enable threshold detection and simple analog-to-digital conversion, further enhancing the device’s ability to interact with the physical world.
This comprehensive analog front end makes the MSP430FR2355 an ideal “Mixed-Signal Microcontrollers” solution for precision sensing and measurement applications, simplifying complex analog designs.
5. Key Features and Specifications of the MSP430FR2355
To provide a clear overview, here are some of the key specifications and features of the MSP430FR2355, often detailed in its datasheet, which can be reviewed for more in-depth technical information.
| Feature | Specification | Benefit for Embedded Designs |
| CPU Core | 16-bit MSP430 CPU16 | Efficient processing, low instruction cycle count. |
| Non-Volatile Memory | 32KB FRAM | Ultra-low-power writes, high endurance (1015cycles), fast write speed. |
| SRAM | 4KB | Fast data access for application variables and stack. |
| Operating Voltage | 1.8V to 3.6V | Wide compatibility with various battery sources. |
| Max CPU Frequency | 16 MHz | Adequate processing power for many embedded tasks. |
| Analog-to-Digital Converter | 12-bit SAR ADC (up to 4 channels) | High-resolution sensor data acquisition. |
| Digital-to-Analog Converter | 2x 12-bit DAC | Precise analog output generation |
| Operational Amplifiers | 4x Configurable Op-Amps | Flexible signal conditioning (PGA, TIA, buffer). |
| Comparators | 2x Enhanced Comparators | Efficient threshold detection and event triggering. |
| Communication Interfaces | 3x eUSCI (UART, SPI, I2C) | Versatile connectivity for peripherals and other MCUs. |
| Timers | 3x 16-bit Timers | Accurate timing, PWM generation, and event counting. |
| Low-Power Modes | Multiple modes down to 0.35 µA (LPM3) | Extended battery life for power-constrained applications. |
6. Texas Instruments MSP430FR2355TRHAR/MSP430FR2355TRHAT Data Sheet Download
7. Understanding MSP430FR2355TRHAR vs. MSP430FR2355TRHAT
When encountering part numbers like “MSP430FR2355TRHAR” and “MSP430FR2355TRHAT,” it’s common to wonder about the differences. In the context of Texas Instruments’ naming conventions, the core “MSP430FR2355” refers to the specific microcontroller integrated circuit itself. The suffixes typically denote packaging, temperature grades, or reel sizes.

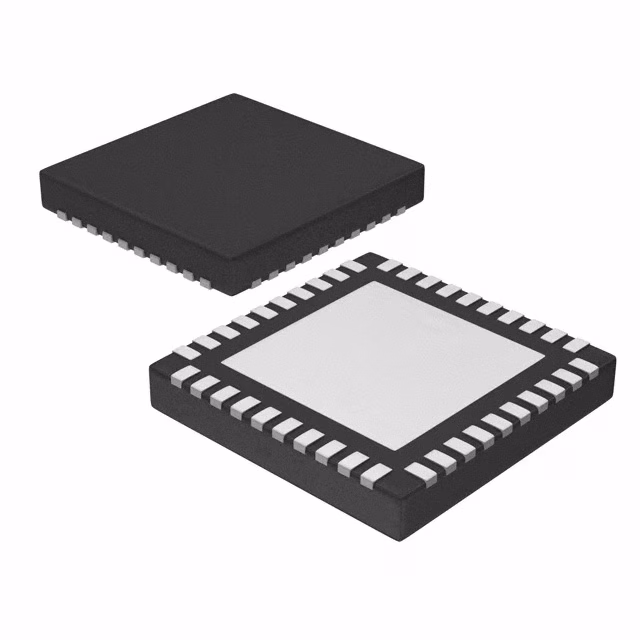

For example, the “RHA” portion often refers to a specific package type, such as a VQFN (Very-thin Quad Flat No-lead) package. The “T” and “R” at the end generally indicate packaging and delivery options:
- T: Often signifies “Tape and Reel,” meaning the parts are supplied on a tape wound around a reel, suitable for automated pick-and-place assembly.
- R: Usually indicates a “Reel” quantity, specifying how many units are on that reel.
- HAR/HAT: These typically differentiate between standard reel sizes or sometimes slight variations in the tape-and-reel format itself.
Essentially, both “MSP430FR2355TRHAR” and “MSP430FR2355TRHAT” refer to the same high-performance “MSP430 CPU16 MSP430™ FRAM Microcontroller IC,” but are packaged and delivered in slightly different industrial formats to meet diverse manufacturing needs. The choice between these two would primarily depend on your production line’s equipment and volume requirements rather than any functional difference in the chip’s capabilities.
8. Real-World Applications for the MSP430FR2355
The versatility and efficiency of the MSP430FR2355 make it an excellent choice for a wide array of “Embedded” applications across various industries:
- IoT Endpoints:Ideal for smart sensors, asset trackers, and remote monitoring devices that require long battery life and integrated analog sensing.
- Portable Medical Devices:Its low power, precision analog, and small form factor are perfect for glucose meters, wearable health monitors, and diagnostic tools.
- Industrial Control and Automation:Used in sensor nodes, human-machine interface (HMI) panels, and small motor control systems where reliability and power efficiency are key.
- Smart Home Devices:From smart thermostats to environmental sensors and security systems, the MSP430FR2355 can power intelligent, connected home devices.
- Consumer Electronics:Applications requiring sophisticated sensor integration and long battery life, such as remote controls, portable gadgets, and smart appliances.
- Building Automation:HVAC control, lighting systems, and occupancy sensors benefit from its mixed-signal capabilities and low power.
9. Texas Instruments MSP430FR2355TRHAR/MSP430FR2355TRHAT Price
According to the latest quotations from major distributors, the market price range for the MSP430FR2355 series chips is approximately USD0.8-USD2.The specific price may vary depending on the following factors:
- Specific model (e.g., MSP430FR2355TPTR, MSP430FR2355TRHAR, etc.)
- Package type (e.g., LQFP, VQFN, etc.)
- Purchase quantity (bulk purchases typically offer more favorable unit prices)
- Supplier and regional differences
This pricing positions it with excellent cost-performance in applications requiring high-performance mixed-signal processing capabilities, especially considering that its integrated FRAM memory and rich analog peripherals can significantly reduce overall system costs.
10.FAQs
The primary advantages are significantly lower power consumption during writes, much higher write endurance (1015cycles), and faster write speeds, which allow FRAM to be treated almost like RAM for non-volatile data storage.
Yes, due to its “ultra-low-power MCU” design and 1.8V ~ 3.6V operating voltage range, the MSP430FR2355 is perfectly suited for extended operation on a single coin-cell battery in many applications.
These suffixes typically denote the packaging type (e.g., VQFN) and the delivery format, such as “Tape and Reel” (TR), which is designed for automated assembly, rather than a difference in the core functionality of the “ICMCU”.
11.Summary
The MSP430FR2355TRHAR/MSP430FR2355TRHAT stands as a beacon of innovation in the “Mixed-Signal Microcontrollers” landscape. By seamlessly integrating a high-performance “MSP430 CPU16” with revolutionary “MSP430™ FRAM” technology and a rich set of “Internal Integrated Circuits” for analog processing, it offers an unparalleled solution for “Embedded” systems. Its “ultra-low-power MCU” design, coupled with a flexible “1.8V ~ 3.6V Microcontrollers IC” operating range, makes it the ideal choice for developers seeking to create sophisticated, energy-efficient, and compact applications in sectors ranging from IoT to medical and industrial.
For those looking to push the boundaries of low-power design and simplify complex mixed-signal challenges, the MSP430FR2355 series provides a powerful, versatile, and well-supported platform.
