Quick Connects, Quick Disconnect Connectors — Component Sourcing
Browse Quick Connects, Quick Disconnect Connectors and send the exact manufacturer part number, required quantity and target date. For a complete board build, include your BOM and PCB files in a turnkey PCBA request.
Catalog entries and category counts do not confirm stock or delivery. Availability, pricing and any proposed alternatives are reviewed for your request.
One part number or a complete BOM?
For individual parts, send the exact manufacturer part number, manufacturer, quantity and required date. For a BOM, include part numbers, quantities per board, reference designators and any approved alternatives.
Need the components assembled?
Keep the board files and BOM on one revision. Request PCB fabrication, sourcing and assembly together, with programming or functional testing defined for your build.
Browse component categories.
Cannot find your part in the directory? Send the full part number or your BOM for review.
|
Images
|
Mfr.Part #
|
In Stock
|
Manufacturer
|
Description
|
Package
|
|---|---|---|---|---|---|
|

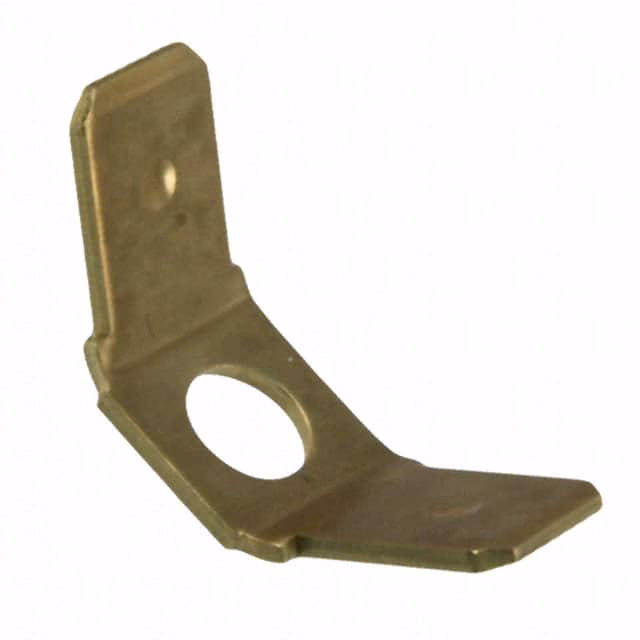

41616 | 21440 | TE Connectivity AMP Connectors | CONN QC TAB 0.250 | Bulk |
|

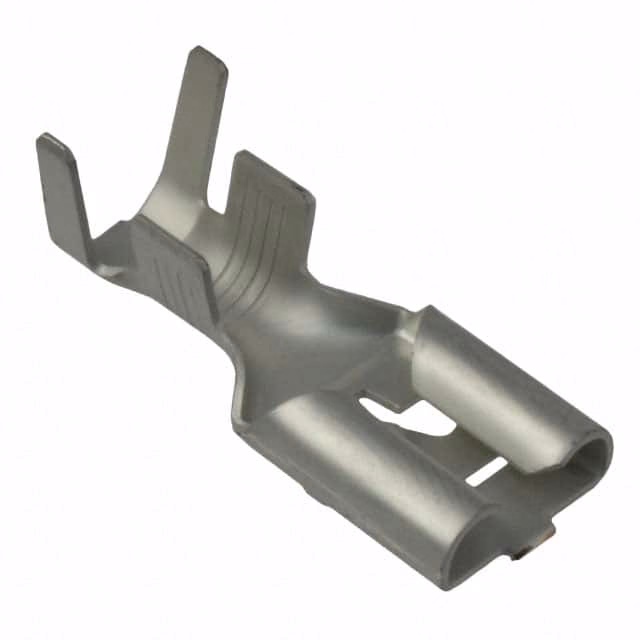

280755-4 | 17434 | TE Connectivity AMP Connectors | CONN QC RCPT 7-10AWG 0.375 CRIMP | Tape & Reel (TR) |
|

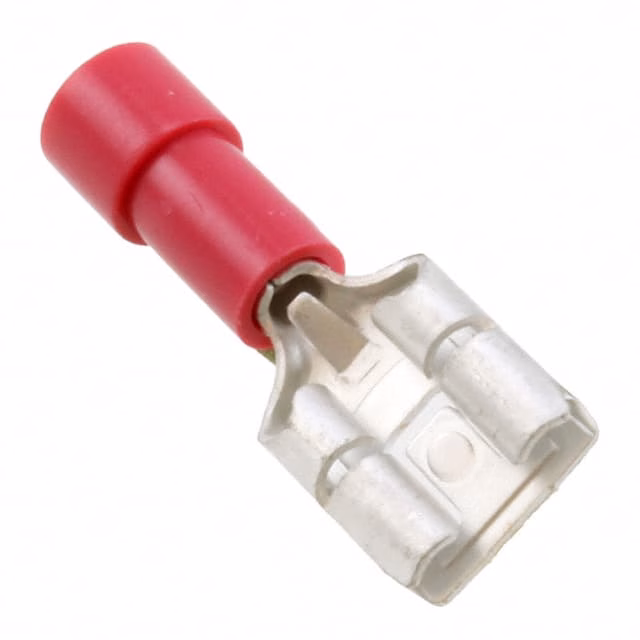

0192740002 | 13907 | Molex | CONN QC RCPT 18-22AWG 0.250 | Bulk |
|
3-520125-2 | 13873 | TE Connectivity AMP Connectors | CONN QC RCPT 14-16AWG 0.187 | Bulk |
|
0197134001 | 10520 | Molex | CONN QC TAB 0.250 SOLDER | Bulk |
|
DV14-205B-3K | 5385 | Panduit Corp | CONN QC RCPT 14-16AWG 0.187 | Tape & Reel (TR) |
|

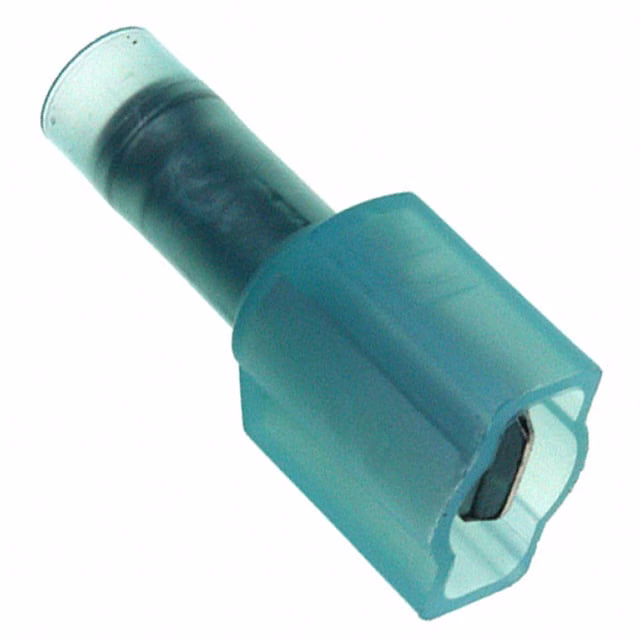

94827 | 14186 | 3M | CONN QC TAB 14-16AWG 0.250 CRIMP | Bulk |
|

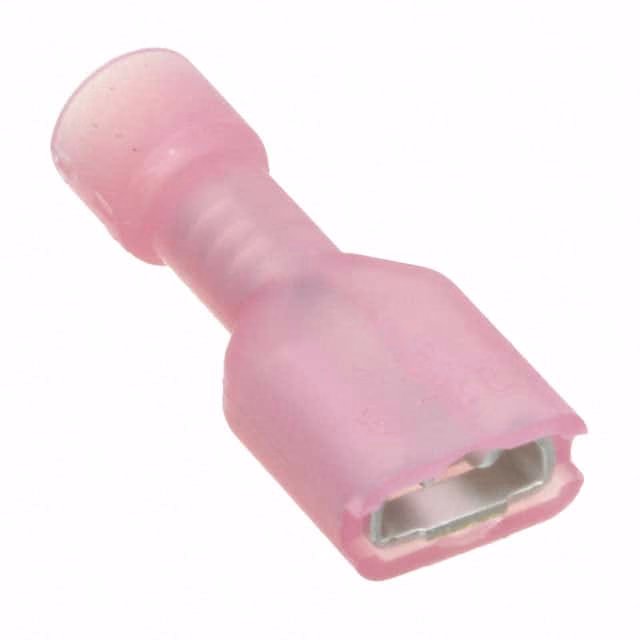

0190030038 | 23604 | Molex | CONN QC RCPT 18-22AWG 0.205 | Bulk |
|

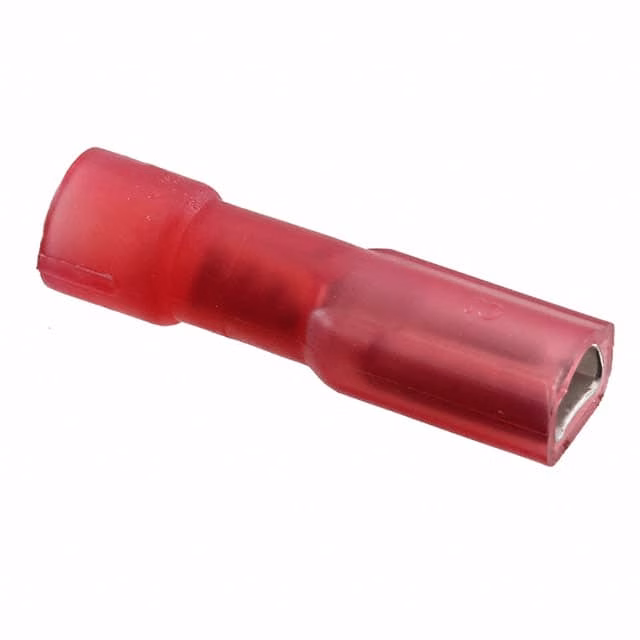

DNF18-110FIB-M | 12238 | Panduit Corp | CONN QC RCPT 18-22AWG 0.110 | Bulk |
|
0190170023 | 14103 | Molex | CONN QC RCPT 14-16AWG 0.110 | Bulk |
Quick Connects, Quick Disconnect Connectors
Quick connect/quick disconnect terminals allow for fast and dependable connection and disconnection of two wires. These single conductor connectors are commonly referred to as FASTON terminals, tab terminals, or blade connectors. They come in a range of different widths, lengths, and wire gauges, and are available uninsulated, partially insulated, or fully insulated. Unlike a lot of electronic components, the color of insulation on these is relevant because it signifies the wire gauge. The terminals can be angled at various degrees, stacked, or multiple other configurations with straight being the standard. There are numerous mounting types and contact finishes for the end user to choose from with these multifunction connectors.
