Specialized — Component Sourcing
Browse Specialized and send the exact manufacturer part number, required quantity and target date. For a complete board build, include your BOM and PCB files in a turnkey PCBA request.
Catalog entries and category counts do not confirm stock or delivery. Availability, pricing and any proposed alternatives are reviewed for your request.
One part number or a complete BOM?
For individual parts, send the exact manufacturer part number, manufacturer, quantity and required date. For a BOM, include part numbers, quantities per board, reference designators and any approved alternatives.
Need the components assembled?
Keep the board files and BOM on one revision. Request PCB fabrication, sourcing and assembly together, with programming or functional testing defined for your build.
Browse component categories.
Cannot find your part in the directory? Send the full part number or your BOM for review.
|
Images
|
Mfr.Part #
|
In Stock
|
Manufacturer
|
Description
|
Package
|
|---|---|---|---|---|---|
|

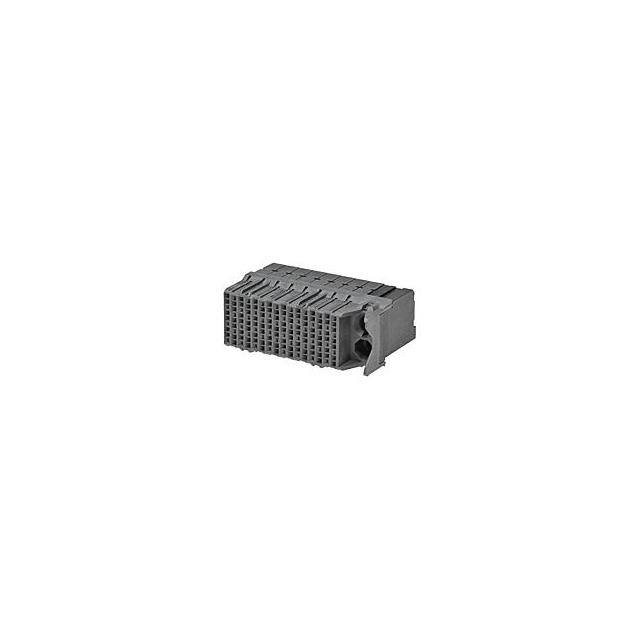

170530-5026 | 50713 | Molex | IMPACT 85 DC 3X16 GR SN | Box |
|

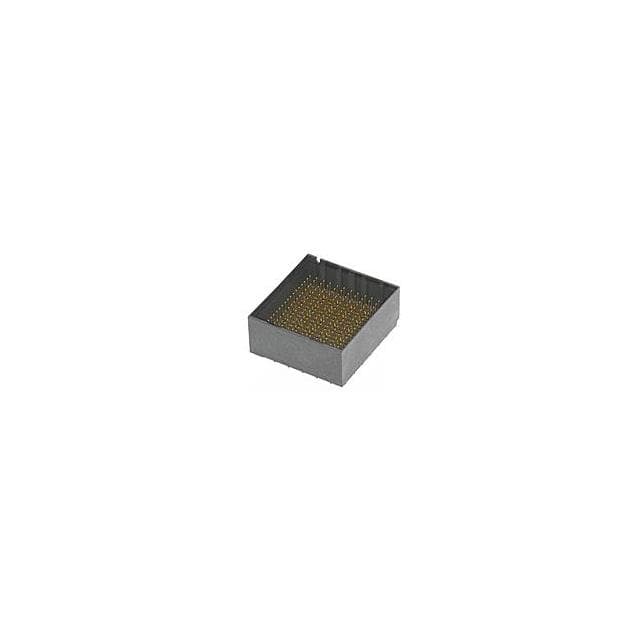

76285-1227 | 18911 | Molex | IMPACT ORTHO BP 6X12 DUAL WALL S | Box |
|

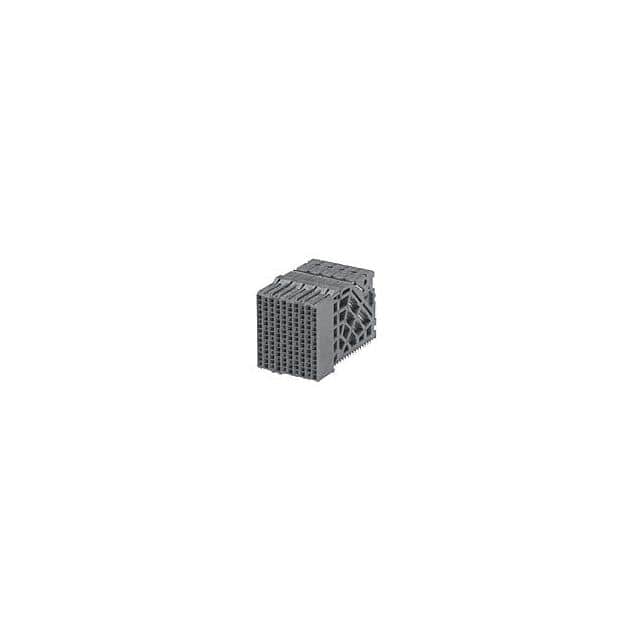

170480-1020 | 20168 | Molex | IMPACT 85 DC 5X10 OPEN SN | Box |
|

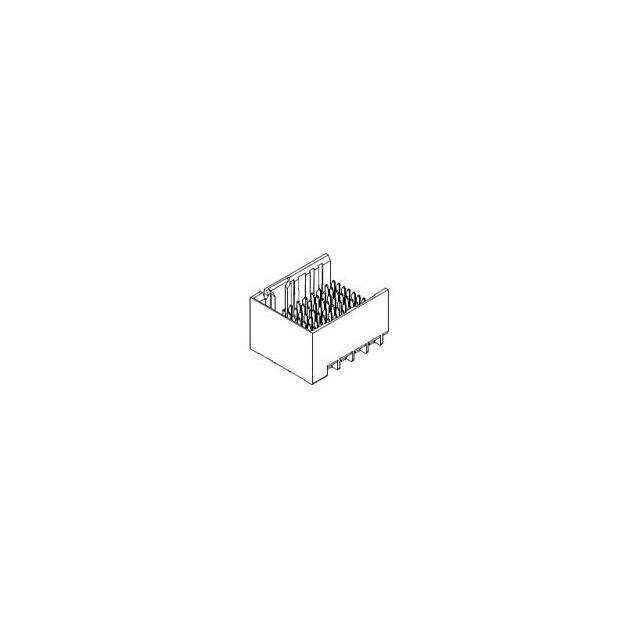

170335-1217 | 19156 | Molex | IMPACT BP 4X12 85-OHM LEFT SN | Box |
|

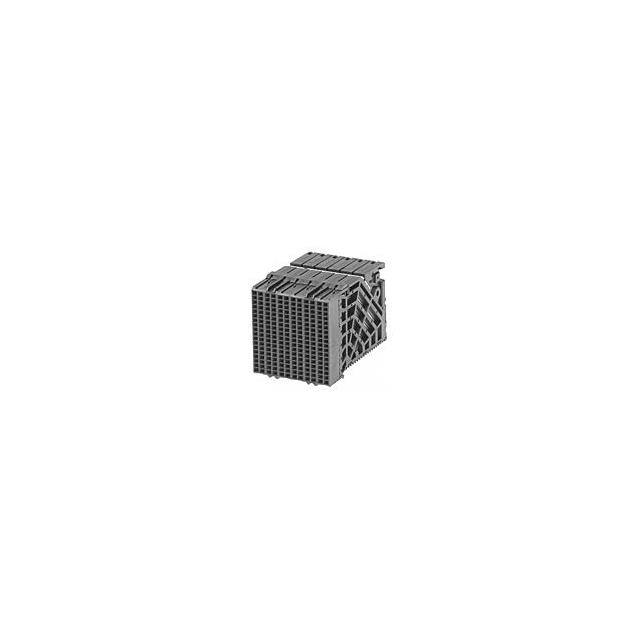

76290-1022 | 48157 | Molex | IMPACT ORTHO DC 6X12 OPEN SN | Box |
|
170340-5020 | 42547 | Molex | IMPACT 85 DC 4X10 GR SN | Box |
|
73942-5000 | 4605 | Molex | HDM BACKPLANE OPEN END OPT 144CK | Box |
|
76160-5026 | 23531 | Molex | IMPACT DC 4X16 GR SN | Box |
|

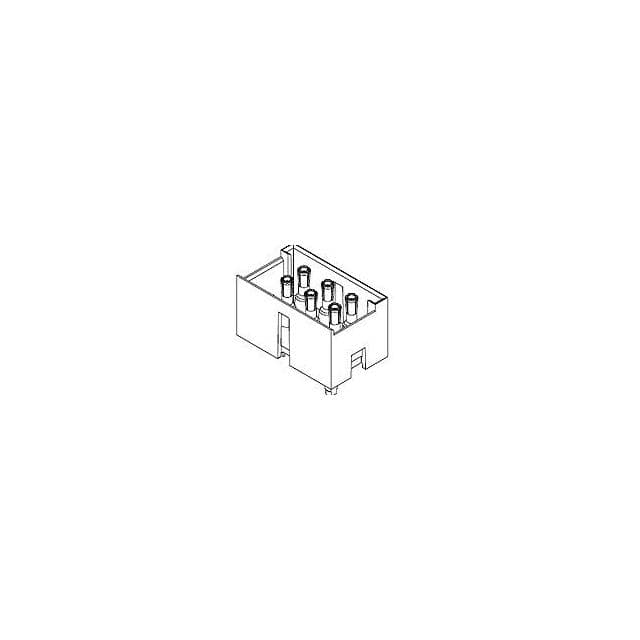

74712-4001 | 23109 | Molex | VERTICAL GANGED RF 8 POS SHORT T | Box |
|

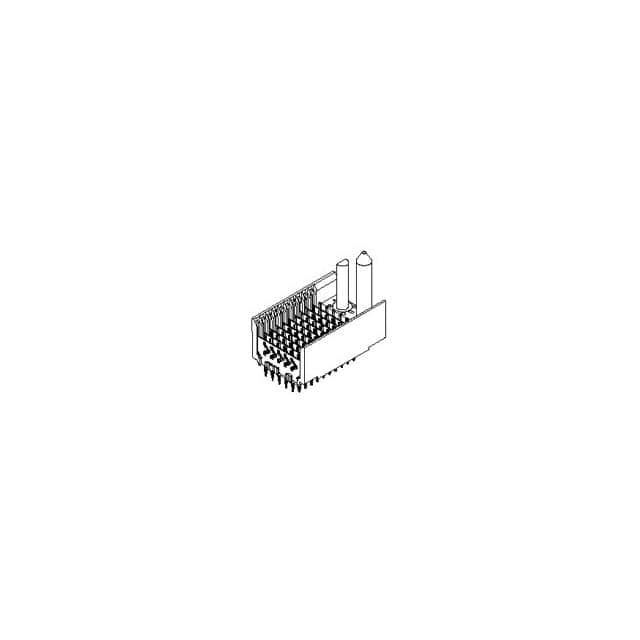

74059-2502 | 41107 | Molex | VHDM BP 6 ROW SHLD END ASSY 25 C | Box |
Specialized
Specialized Backplane Connectors conform to a set of specifications for use with daughterboards, midplane, coplanar, or front boards, and are meant to be used in a backplane or rack and panel system. They are characterized by the connector type, number of positions, pitch, number of rows, and contact layout.
