Specialized — Component Sourcing
Browse Specialized and send the exact manufacturer part number, required quantity and target date. For a complete board build, include your BOM and PCB files in a turnkey PCBA request.
Catalog entries and category counts do not confirm stock or delivery. Availability, pricing and any proposed alternatives are reviewed for your request.
One part number or a complete BOM?
For individual parts, send the exact manufacturer part number, manufacturer, quantity and required date. For a BOM, include part numbers, quantities per board, reference designators and any approved alternatives.
Need the components assembled?
Keep the board files and BOM on one revision. Request PCB fabrication, sourcing and assembly together, with programming or functional testing defined for your build.
Browse component categories.
Cannot find your part in the directory? Send the full part number or your BOM for review.
|
Images
|
Mfr.Part #
|
In Stock
|
Manufacturer
|
Description
|
Package
|
|---|---|---|---|---|---|
|
74057-1001 | 34665 | Molex | VHDM BP 6 ROW OPEN ASSY 10 COL | Tube |
|

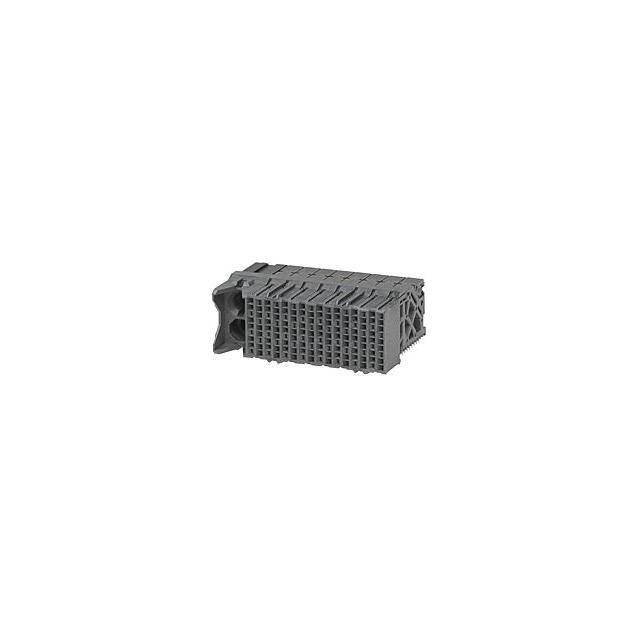

170530-3026 | 17126 | Molex | IMPACT 85 DC 3X16 GL SN | Box |
|

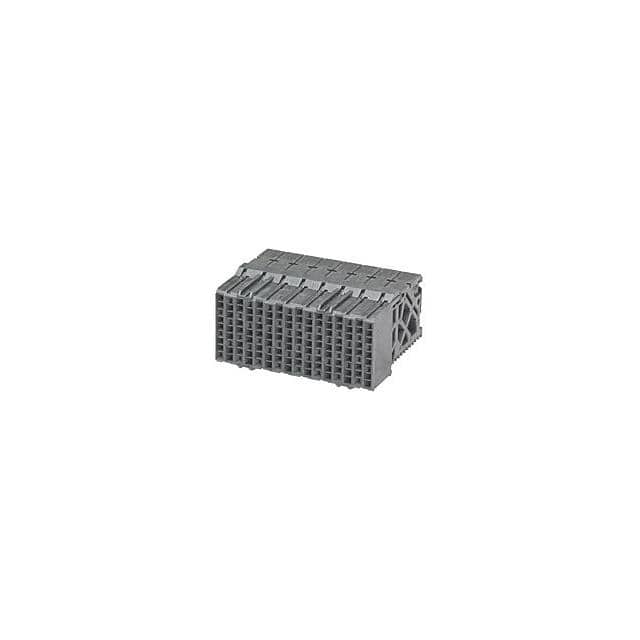

170530-1026 | 49567 | Molex | IMPACT 85 DC 3X16 OPEN SN | Box |
|

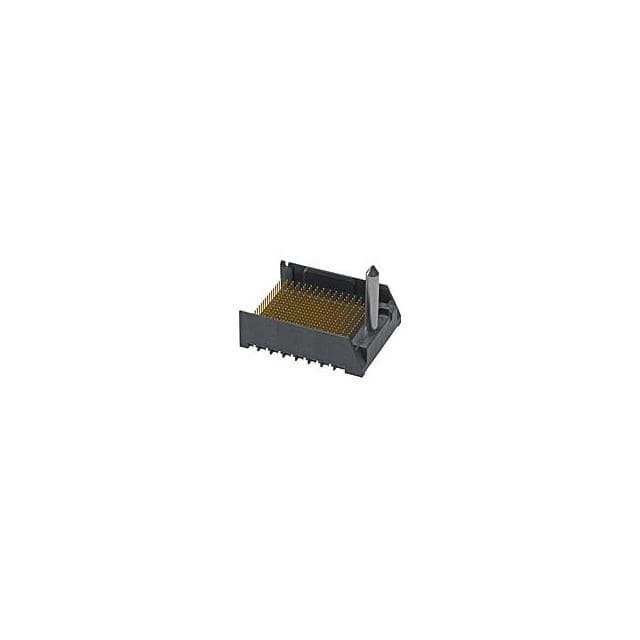

76145-5617 | 52946 | Molex | IMPACT BP 6X16 GR SN | Box |
|

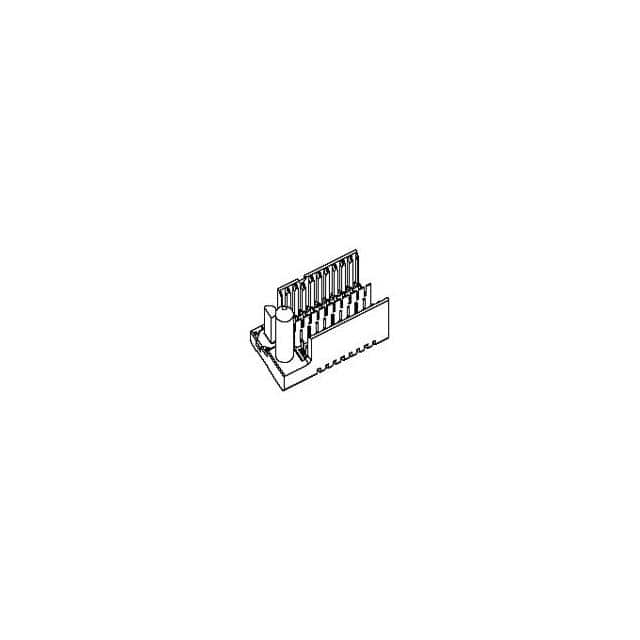

75827-2104 | 30755 | Molex | GBX 2-PAIR 10 COLUMN LEFT BACKPL | Box |
|

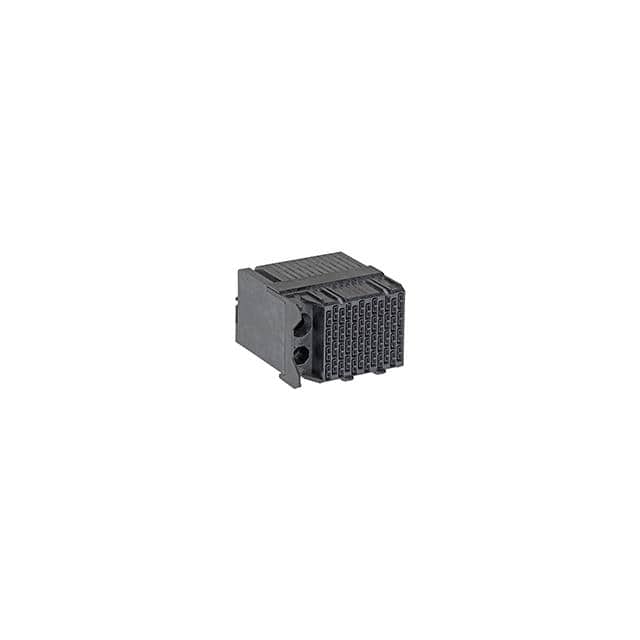

171320-3022 | 57136 | Molex | 171320-3022 | Box |
|

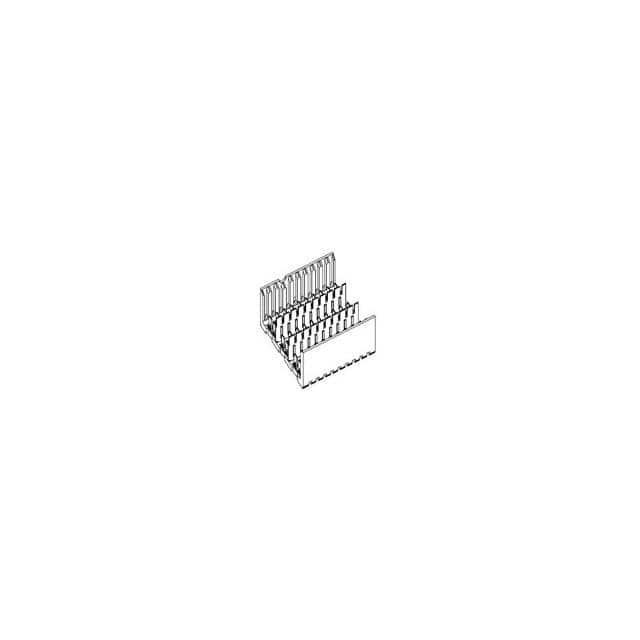

75838-0105 | 28522 | Molex | GBX 4-PAIR 10-COLUMN OPEN LF BP | Box |
|

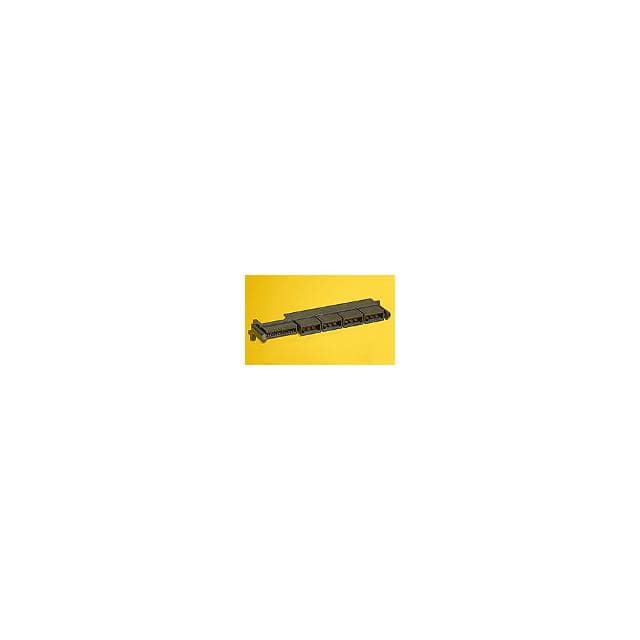

45984-4483 | 39037 | Molex | LPH RCPT ASSY RTAN 04 PWR 40 SIG | Tray |
|

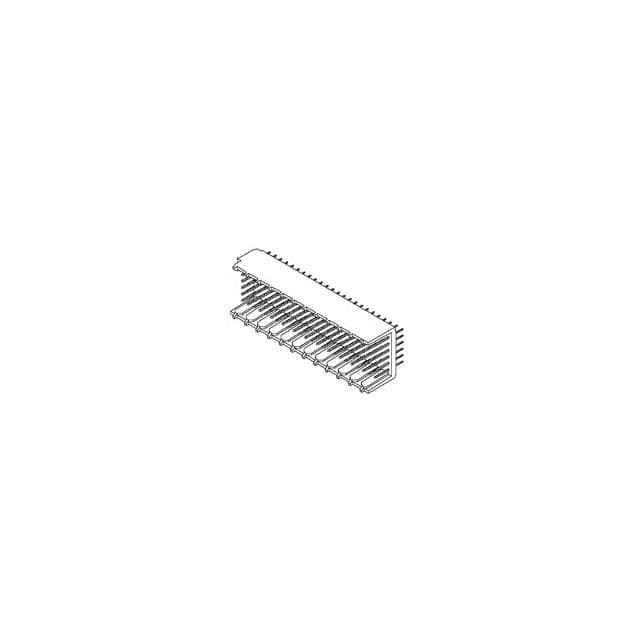

73942-5000 | 4605 | Molex | HDM BACKPLANE OPEN END OPT 144CK | Box |
|

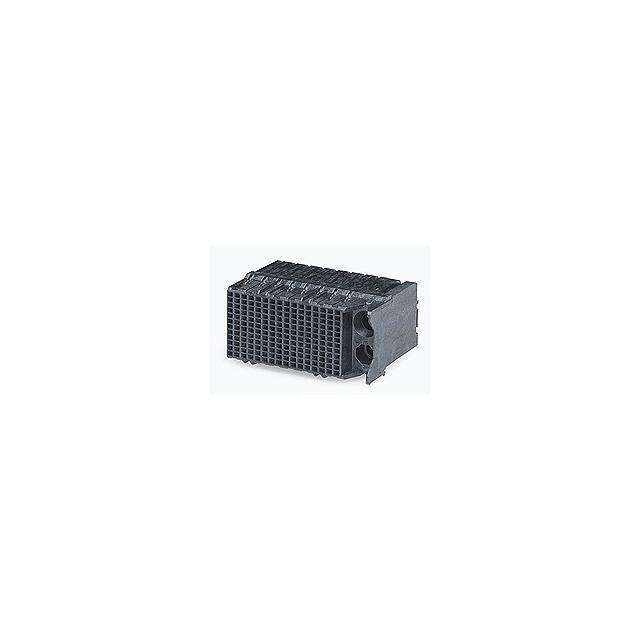

76160-5026 | 23531 | Molex | IMPACT DC 4X16 GR SN | Box |
Specialized
Specialized Backplane Connectors conform to a set of specifications for use with daughterboards, midplane, coplanar, or front boards, and are meant to be used in a backplane or rack and panel system. They are characterized by the connector type, number of positions, pitch, number of rows, and contact layout.
PARTS, BOM OR COMPLETE PCBA
Request your component or BOM quote.
Tell us whether you need parts only or a finished PCB assembly. Availability, price, order quantity and delivery are confirmed for your specific request.
- Exact manufacturer part numbers and manufacturers
- Required quantity, target date and shipping destination
- BOM file and quantity per board for a complete build
- Approved alternatives and any parts that must not be substituted
- For turnkey PCBA: PCB files, placement data and test requirements
Proposed substitutions need your approval. Tell us about traceability, documentation or packaging requirements before purchasing is agreed.
Files are optional for an initial discussion. You can send the BOM by email if the uploader does not accept your file. An inquiry does not authorize purchasing or production.
