Understanding the World of PCB Manufacturing and Assembly

Printed Circuit Boards (PCBs) are a fundamental electronic platform that is in charge of simple devices such as the smartphone, to highly advanced industrial applications. The efficiency and effectiveness of its use make it an asset to the day's technological advanced societies. This blog keeps readers informed about the details of how assembled printed circuit board, the PCB assembly manufacturing process, and the basic components of circuit boards.

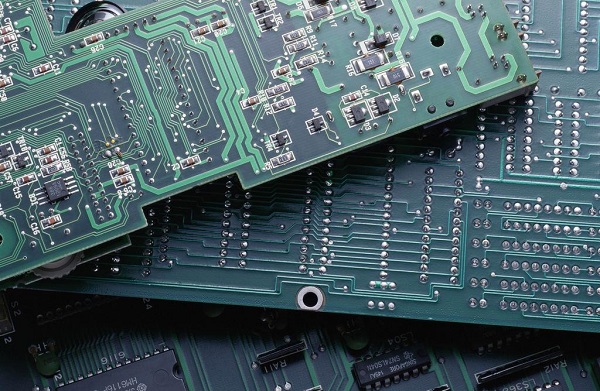

The Basics of Printed Circuit Boards

PCBs are the back bone of electronic circuits. They are the component that allows the interconnection of different electronics using the conductive paths, paths and tracks. This relation enables easy flow of information and control in the path of the circuit. Manufacturing of printed circuits over the years has been improving bringing in techniques that must be used in current electronics.

Types of PCBs

1. Single-Sided PCBs

These have only one layer of conductive material and are employed in small appliances.

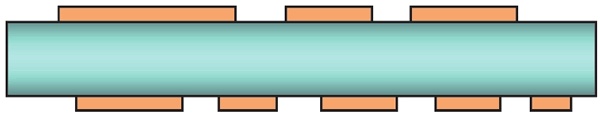

2. Double-Sided PCBs

Both of these have the conductive material on each side enabling the design more detailed circuit paths.

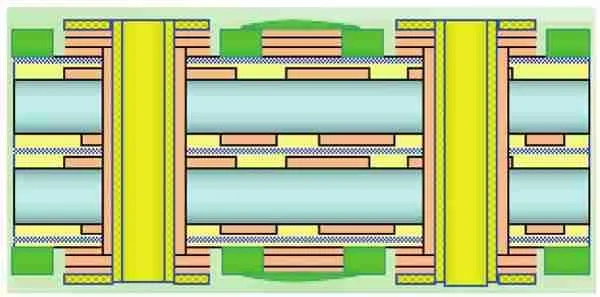

3. Multilayer PCBs

These are multilayer constructions employed in high performance devices, designs compactness and functionality not being compromised.

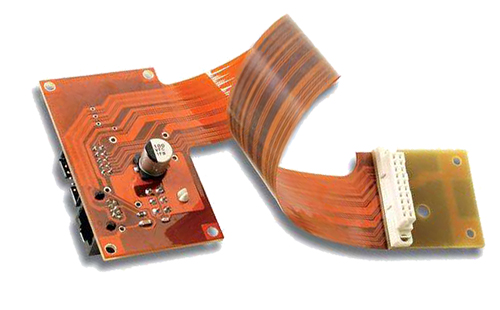

4. Rigid PCBs, Flexible PCBs, and Rigid Flexible PCBs

Such variations meet distinct uses, while the flexible designs in the printed circuit boards ensure the capacity of offering flexibility, and rigid-flex boards are more rigid, but they have the feature of flexibility too.

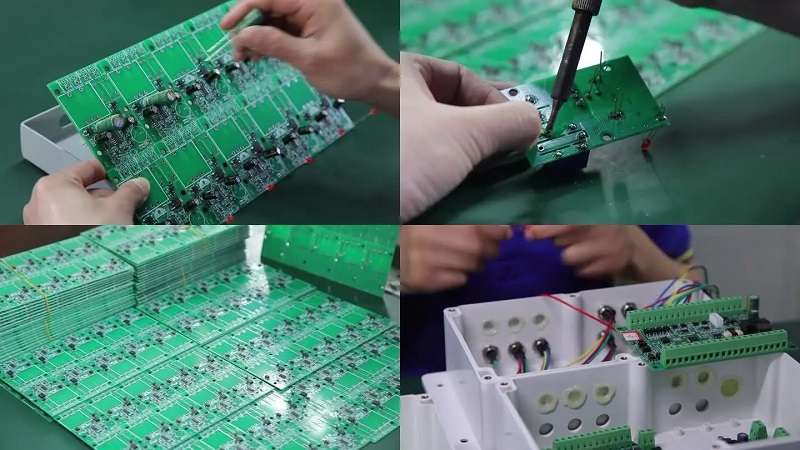

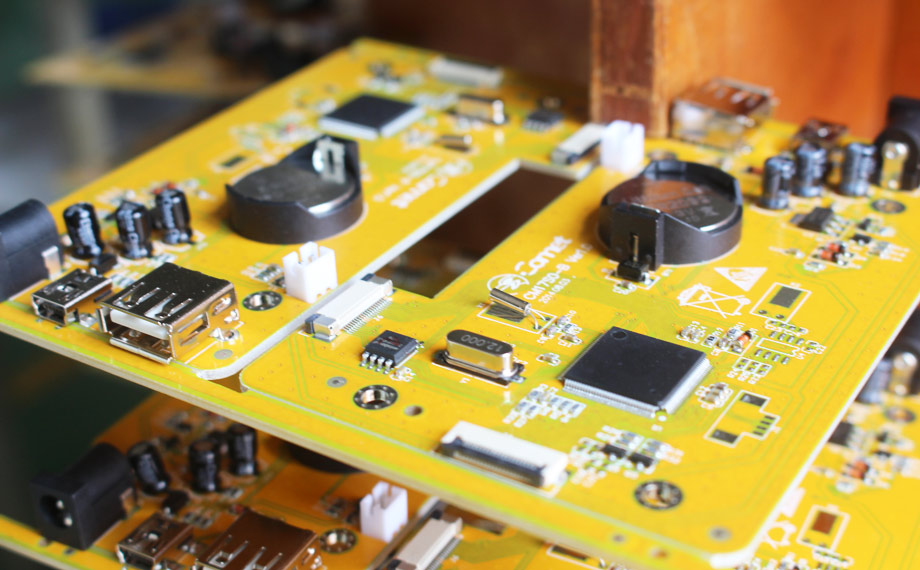

Assembled Printed Circuit Boards

An pcb assembly manufacturing is commonly referred to as an electronic circuit that has incorporated on the PCB. The process of mounting and soldering these electronic components such as Resistors, Capacitors and Integrated circuits etc onto the helaed PCB is called PCB assembly. Assembly methods are well advanced with the use of technology, which enhances accuracy and timely production.

PCB Assembly Methods

1. Surface Mount Technology (SMT)

SMT was designed by connecting and joining components to the surface of a PCB in various ways. This method is preferred to others because it allows designing compact and is suitable for the high-velocity production system.

2. Through-Hole Technology (THT)

THT comprises driving through hole component leads into holes drilled on the PCB, from where soldering takes place on the other side of the PCB to specific pads. As it is clear from the previous section, this method offers very good mechanical interconnections and therefore useful where high strength is required.

3. Mixed Technology

In some instances, the product needs to be produced both with through hole and surface mounting techniques to accommodate the craft and durability of application.

The Process of PCB Assembly Manufacturing

Printed circuit manufacturer comprises a number of precise processes to achieve and accomplish design standards and needful functionality.

Key Steps in PCB Assembly

1. Solder Paste Application

Solder paste is used by a stencil which is to place solder paste on the PCB hot area of the board where the components will be fitted.

2. Pick and Place

To align components onto the solder-pasted areas, the use of automated machines is adopted.

3. Reflow Soldering

The PCB then goes through the reflow oven to reflow the solder paste much as in soldering making conical connections between the components and the board.

4. Inspection and Testing

Post-soldering inspection involves visual inspection, automated optical inspection, and functional test in order to quality requirements of the PCB.

5. Final Assembly

For other boards that need extra attachments or alterations, physical assembling and checkups are performed at this level.

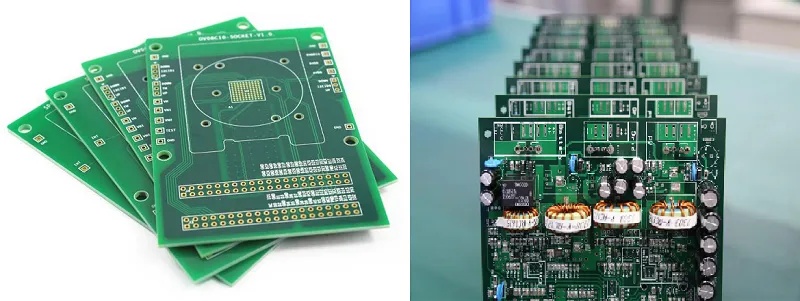

Printed Circuit Manufacturing Processes

PCB board manufacturer only commissions the bare boards that will then be assembled into equipment. This include complex methods, so that the printed circuit board conforms to electrical and physical specifications.

Fabrication Process

1. Design and Layout

The process starts with preparation of a design layout, which is often prepared by this software and tools.

2. Material Selection

For high-frequency applications and operating conditions FR4, polyimide, or metal cores are selected.

3. Layer Preparation

Printed layers are formed by etching a copper sheet into the necessary circuit plan.

4. Drilling and Plating

Thts and component leads, as well as vias, are drilled, and these require plating for electrical continuity.

5. Solder Mask Application

An outer coating is provided to avoid formation of oxides and any unintended short circuit.

6. Silkscreen Printing

The printing on the board is that of labels, component identifiers and other markings help the assembly team.

Challenges of Circuit Board Manufacturing

There are many challenges in the pcb manufacturing including but not limited to the following as the world advances and the size of devices demanded shrink and at the same time the power they are required to deliver also shrinks.

1. Miniaturization

When the handheld devices become cheaper, the manufacturers have to develop the small PCBs that would have the same circuit density.

2. High-Frequency Applications

These factors poses a major problem because high speed signal integrity is always difficult to achieve.

3. Thermal Management

Proper heat management is important to avoid serious issues such as a device getting too hot to handle usually as a result of its own performance.

4. Environmental Regulations

Companies have embraced high standards of production limited by laws like the RoHS in a bid to cut down on impacts on the environment.

PCB Manufacturing Techniques

Printed circuit board manufacturers involves techniques to match these challenges to guarantee quality boards that are highly functional.

1. Laser Drilling

In cases where microvias are needed, laser drilling assures of accuracy in multilayer boards.

2. HDI High-Density Interconnect

HDI technology allows developing thin products equipped with more options.

3. Embedded Components

That is, the use of internal connections minimizes PCB size and increases functionality by establishing links within the layers of the board.

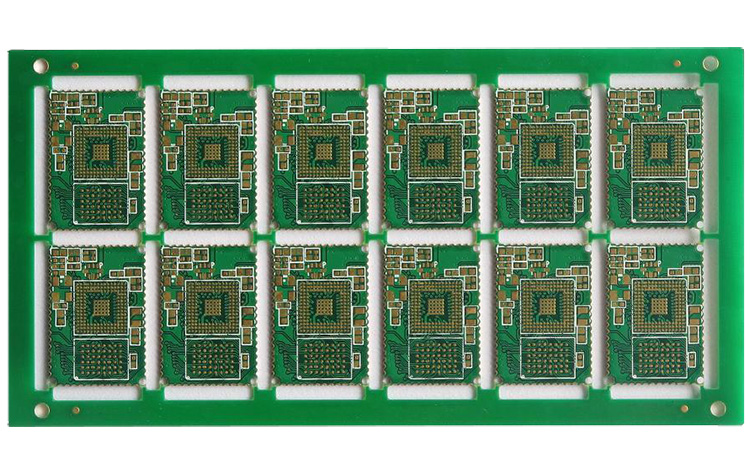

PCB Board Fabrication

PCB board fabricationis an important procedure that forms the backbone of manufacturing of high quality PCBs. This entails putting together components to produce functional boards to be processed for assembly.

1. Photolithography

This process reproduces the circuit diagram of the board through the exposure to UV light and photosensitive sod.

2. Etching

Iron, which is unwanted, is taken out to leave behind the wanted layout of copper circuits.

3. Lamination

Multilayer PCBs involve combining of several layers to create a single PCB.

4. Testing and Verification

Electrical tests are conducted so as to confirm certain design conditions in the fabricated PCB.

Selecting a PCB Board Fabricator

It is therefore important that one has to be very careful with the choice of the Circuit board manufacturing. Key factors to consider include:

1. Experience and Expertise

There is always added advantage when one deal with the manufacturers with more experience especially in regard to the complicated designs and undue complications that might be involved.

2. Technological Capabilities

Energy and safety are guaranteed through the use of advanced apparatus and methods in handling the devices.

3. Quality Assurance

On this score do look for manufacturers that provide rigorous quality control and quality standards confirmation.

4. Customization Options

Flexibility in meeting specific design and functional needs is possible for various uses — this is essential.

The Future of PCB Manufacturing

It is clear that the industry involved in the making of PCBs is dynamic. Technological advancements such as smart design, free-form PCBs and certain sustainable materials are in the making. Hence, proving that as industries such as IoT, automotive and aerospace advance, so does the requirement for advanced PCBs.

Conclusion

PCB assembly manufacturing and circuit board manufacturing is a complex technological world of assembled printed circuit boards. Regardless of the involvement with PCB board fabrication or working directly with printed circuit board manufacturers these processes facilitate informed decision making leading to fabulous products.
