Which is better, SMT or DIP?

SMT and DIP are two common ways of soldering electronic components. They each have their advantages and
disadvantages. The choice depends on the specific application scenario.

SMT is a surface-mounting technology. It has the advantages of small size, lightweight, high precision,
and good reliability.

Therefore, it is widely used in computers, communications, automobiles, etc.

DIP is a deep insertion DIP package, a packaging method for electronic components.

It uses huger electronic components and installs them on the printed circuit board by insertion to realize the
assembly and connection of the circuit. The DIP package has the advantages of huge volume, good
reliability, and low cost.

Therefore, it is widely used in audio, video, communication, and other fields.

Both SMT and DIP have their advantages and disadvantages. Which method to choose depends on the specific
application scenario and requirements.

SMT and DIP: How to choose the packaging of electronic components?

In today's technological field, how do we choose the appropriate packaging method?

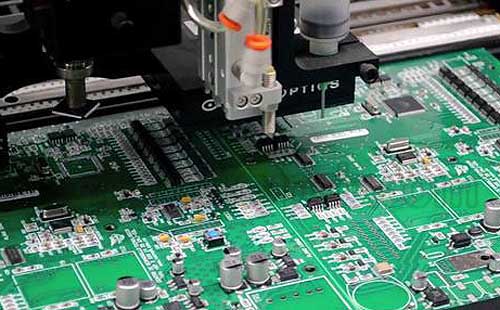

SMT: Small, Efficient, Modern

SMT is a modern electronic component packaging technology. Its main feature is that the component can be
directly soldered to the surface of the PCB without the need for connection through holes, so it is also
called "hole-free mounting."This packaging method has many advantages, making it the preferred
packaging method for many modern electronic products.

First, SMT components are smaller because they do not require the pins required by traditional DIP
components. It makes SMT packaging suitable for electronic devices requiring high integration and
miniaturization, such as smartphones, tablets, and portable devices.

In addition, SMT technology also provides higher assembly density, which can accommodate more components
in a limited PCB space, thereby improving the performance of the circuit board.

Secondly, SMT can provide higher production efficiency. Since SMT components can be quickly and
accurately mounted by automation equipment, the SMT production line's throughput is higher, thus
reducing manufacturing costs.

It is particularly significant for high-volume production electronics.

In addition, the soldering quality of SMT components is higher. Since soldering is performed under
well-controlled conditions, the contact points are more uniform and reliable, reducing possible
soldering defects. It improves the reliability and life of the product.

Finally, SMT packaging also has better high-frequency characteristics and is suitable for the appliance
of high-speed electronic signal transmission. This makes SMT an ideal choice for communications,
computer motherboards, and high-performance electronic equipment.

However, SMT also has some limitations. First, SMT components don't apply to electronic devices
requiring frequent replacement or upgrades because they are soldered to the PCB and cannot be easily
replaced.

Secondly, SMT soldering requires special production equipment and processes, which may increase the
initial investment cost. Finally, SMT packaged components are more susceptible to thermal stress and
environmental factors.

Therefore, applications in extreme temperatures or harsh environments may require additional protection
measures.

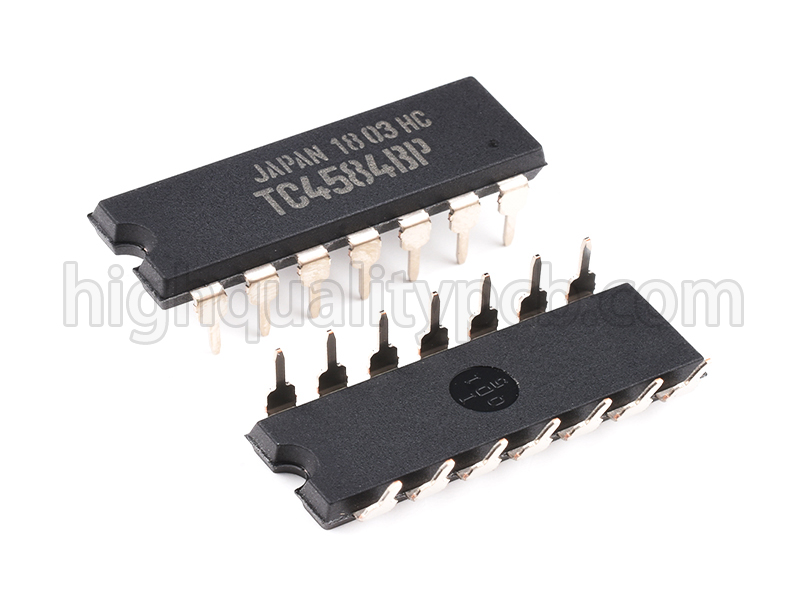

DIP: Stable, maintainable, traditional

DIP is a traditional electronic component packaging method. It features the component's pins passing
through the PCB and soldered to the other side of the board. This packaging method is still widely used
in many traditional and high-stability applications.

First, DIP components are relatively large because they require pins to attach to the PCB. It makes DIP
suitable for electronic devices needing high power or current because the pins can handle heat and
current better.

In addition, the pins of DIP components also make them easier to install and repair by hand, so they
have certain advantages in PCB prototyping and small-batch production.

Secondly, DIP components are generally more stable because their pins can be more securely fixed to the
PCB. It makes them more reliable in shock or vibration environments and suitable for some industrial and
military applications.

In addition, DIP packages also have better heat resistance and are suitable for applications in
high-temperature environments. Because the pins of the components penetrate the PCB, they can better
dissipate heat and reduce the risk of thermal stress on the components.

However, DIPs also have some disadvantages. First, their package size is relatively large and doesn't
apply to miniaturized devices. Second, manual installation and repair may increase production costs and
reduce production efficiency.

Finally, DIP components may not perform as well as SMT components in high-frequency applications because
the length and layout of the pins may introduce unwanted inductance and capacitance.

How to choose between SMT and DIP?

Choosing SMT or DIP packaging depends on your specific application requirements. Here are some
considerations factors:

Application type

If your application requires miniaturization, high integration, and high-frequency characteristics, then
SMT may be more suitable. But, if you need a product with high power, stability, and easy maintenance,
DIP may be more appropriate.

Production scale

If your product needs high-volume production, SMT is usually more cost-effective. But, if you only need
small batches or circuit board prototypes, DIP may be more convenient for manual assembly and repair.

Environmental conditions

Consider the environmental conditions your product will operate in. If your device will be exposed to
extreme temperatures, vibration, or high humidity, the stability and durability of a DIP may be more
appropriate.

SMT components may require additional protection measures to adapt to these harsh conditions.

Design cycle and cost

If you need quick prototyping and low-cost manufacturing, DIP may be more suitable because it does not
require special SMT equipment and processes.

But, in the long run, SMT's efficient production and miniaturization may save more costs.

Technology Trends

With the continuous advancement of technology, SMT packaging technology has been widely developed and
supported. When you want to stay on top of technology trends, you choose SMT to be better.

Maintenance requirements

If your product requires frequent maintenance, upgrades, or component replacement, the manual repair
advantage of DIP may be more significant.

However, choosing between SMT or DIP packaging should be made after considering many factors.

In some cases, mixing SMT and DIP components is also a viable option to give full play to their
respective advantages.

In conclusion, SMT and DIP are two different electronic component packaging methods, each with some
advantages and limitations.

We can choose SMT or DIP based on process principles, production efficiency, production costs,
application scenarios, etc.

We can also consider specific application requirements, production scale, environmental conditions, and
costs.

When electronic products require large-scale integrated circuits and high-density connections, select
SMT technology.

If electronic products require the installation and connection of miniaturized components, you can
choose DIP process technology.

As technology continues to grow, the performance and applicability of SMT and DIP may also change, so be
flexible when making decisions and keep an eye on industry trends.
